| Manufacturer:
|
POMA |
| Type:
|
Gondola (8 Person) |
| Terminals:
|
POMA Competition Series |
| Cabin Manufacturer:
|
CWA of Switzerland w/ X-Cabins |
| Cabin Manufacturer:
|
Poma Double-T grip |
| Installed:
|
1997 |
| Drive:
|
At top station |
| Tensioning:
|
At bottom station |
| Main Drive: |
2 ea. 600 HP GE motors = 1,200 HP |
| Evacuation Motor: |
2 ea. 800 HP Cummins Diesel motors = 1,600 HP |
| Motor rating, continuous: |
N/A kW |
| Motor rating, starting:
|
N/A kW |
| Gearbox: |
Kissling PK-500 |
| Haul
rope diameter: |
50 mm |
| Rope
guage: |
5.2 m |
| Vertical
rise: |
2,730 ft / 837.3 m |
| Inclined
length: |
8,730 ft / 2,649 m |
| Average grade: |
33 % |
| Speed
on line: |
1,200 fpm / 6 m/s |
| Speed
in station: |
3.2 fps / 1 m/s |
| Number of towers:
|
N/A |
| Number of cabins:
|
84 pcs. |
| Cabin interval:
|
15 seconds |
| Distance between cabins:
|
96.2 m |
| Design capacity:
|
2,400 P/h |
| Initial capacity:
|
1,893 P/h |
| Ride time: |
7.32 minutes |
| Chair
parking: |

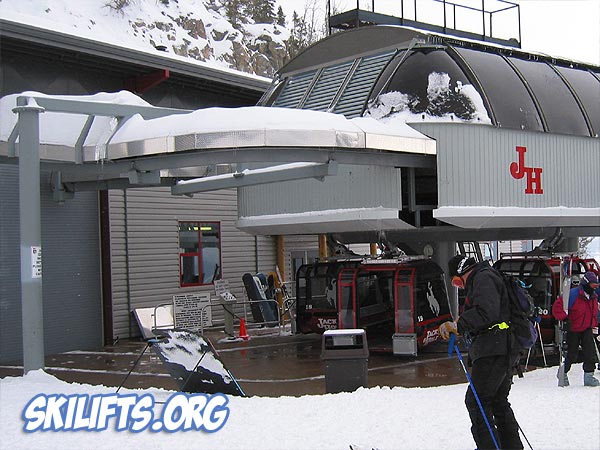

At top terminal |
| Total cost:
|
$6.3 million |
