Apex - Solitude
Apex at Solitude, UT

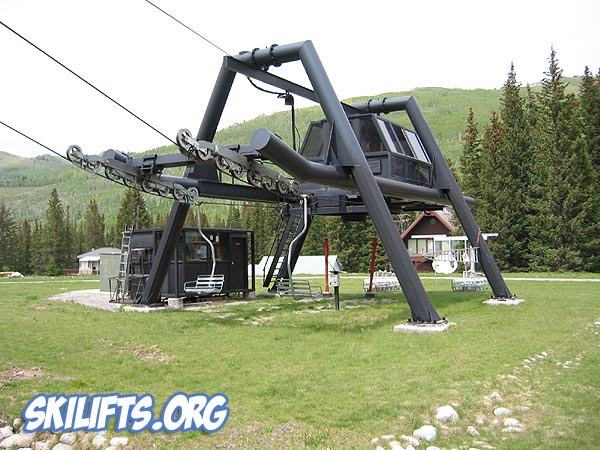

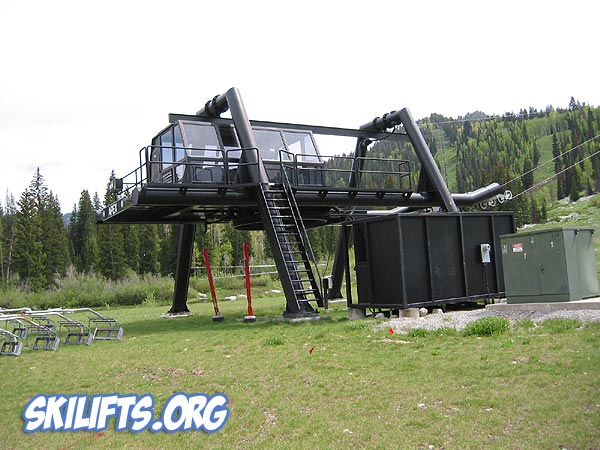

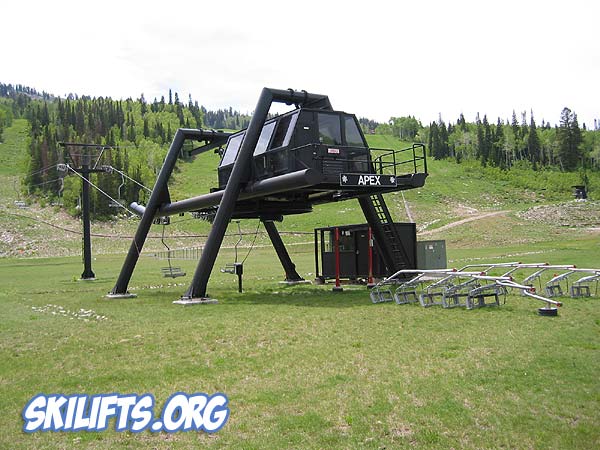

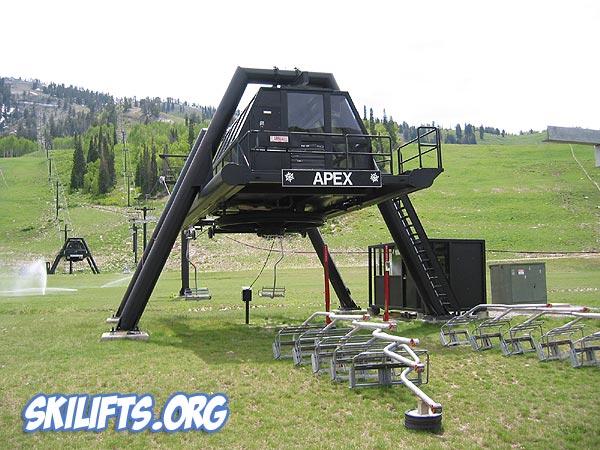

The Lower Station
Apex at Solitude, UT
The Lower Station
Apex at Solitude, UT
The Lower Station
Apex at Solitude, UT
The Lower Station
Apex at Solitude, UT

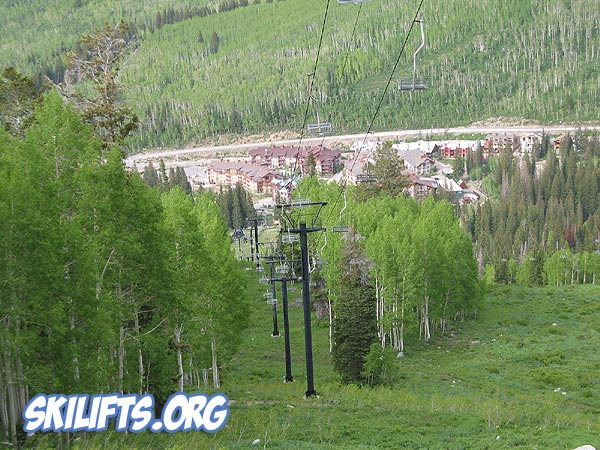

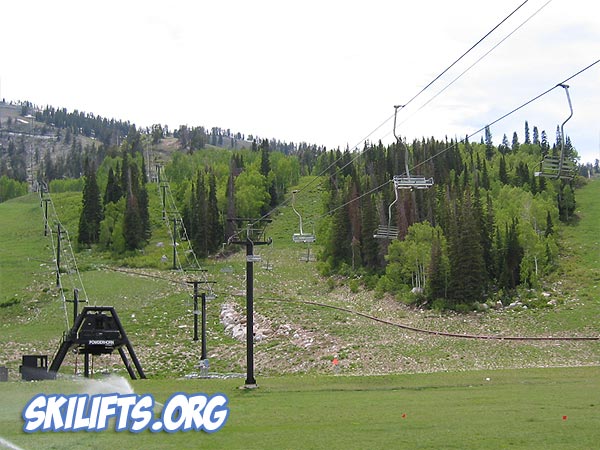

The Lift Line
Apex at Solitude, UT
The Lift Line
Apex at Solitude, UT
The Lift Line
Apex at Solitude, UT

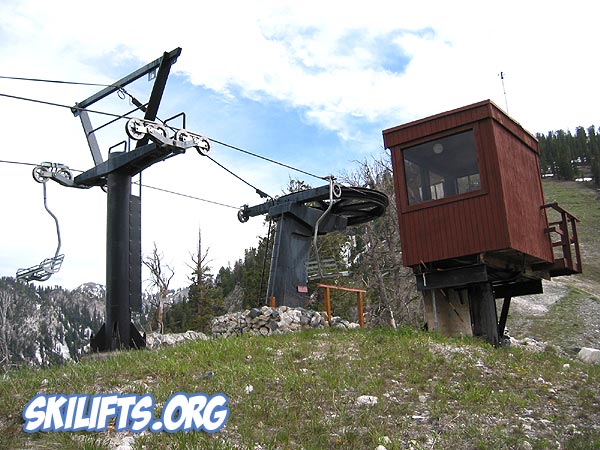

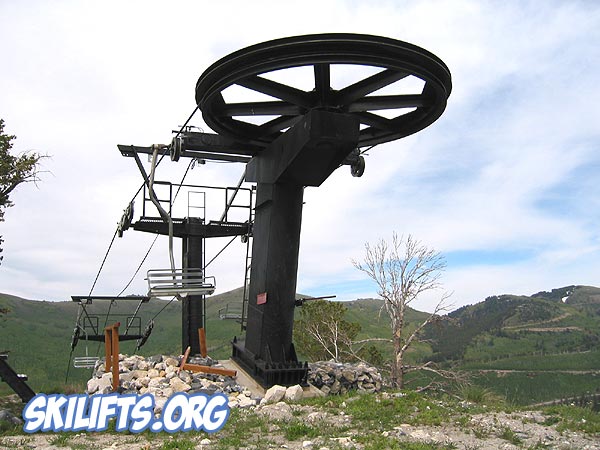

The Top Station
Apex at Solitude, UT
The Top Station
Lift Stats:
Manufacturer:  Thiokol/ CTEC
Type:  Double
Installed:  1977
Drive:  At bottom station
Tensioning:  At bottom station
Motor: N/A HP
Motor rating, continuous: N/A kW
Motor rating, starting:  N/A kW
Haul rope diameter:  N/A mm
Rope guage:  N/A m
Vertical rise: 1,087 ft / 331.3 m
Inclined length:  3,472 ft / 1,058 m

Speed on line:

500 fpm / 2.54 m/s
Speed in station: 500 fpm / 2.54 m/s
Number of towers:  21
Number of chairs:  N/A
Capacity:  1,200 P/h
Ride time:  N/A minutes

Chair parking:

N/A

Other notes:

Features a CTEC drive terminal.
     >
