Transfer Tow - Alta
Transfer Tow at Alta

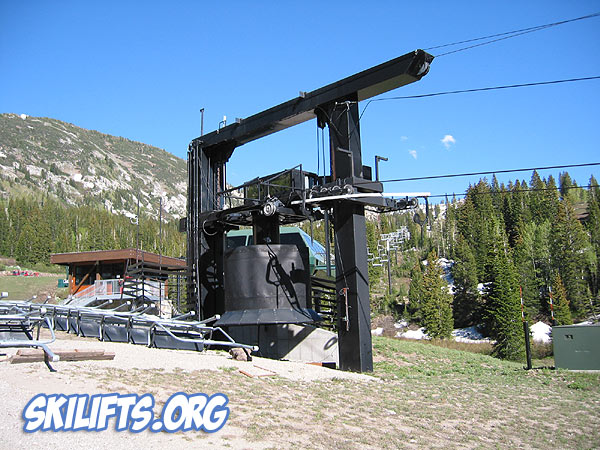

The Lower Station
Transfer Tow at Alta

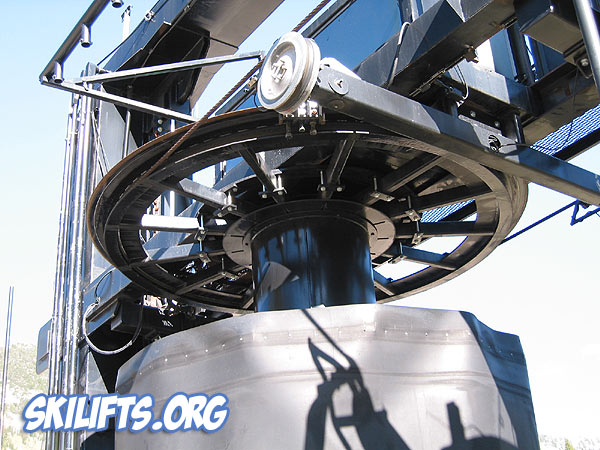

THe Drive Bullwheel
Transfer Tow at Alta
The Lower Station
Transfer Tow at Alta
The Lower Station
Transfer Tow at Alta

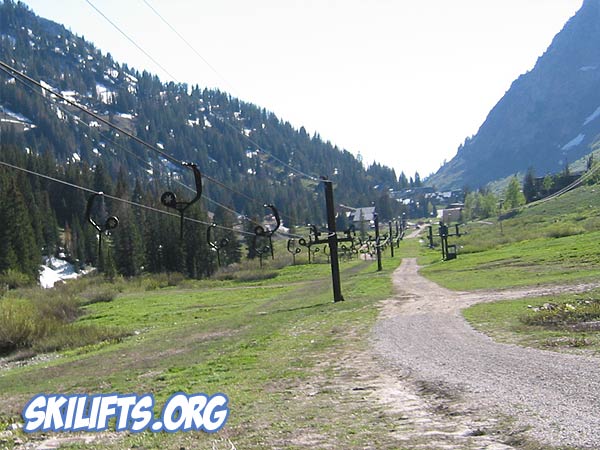

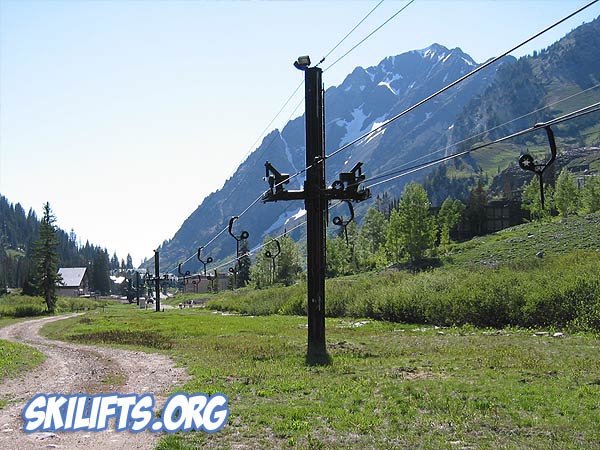

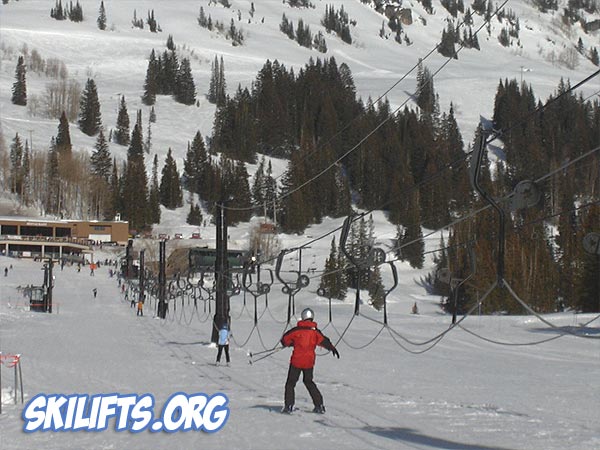

Looking Up The Lift Line
Transfer Tow at Alta
Looking Up The Lift Line
Transfer Tow at Alta

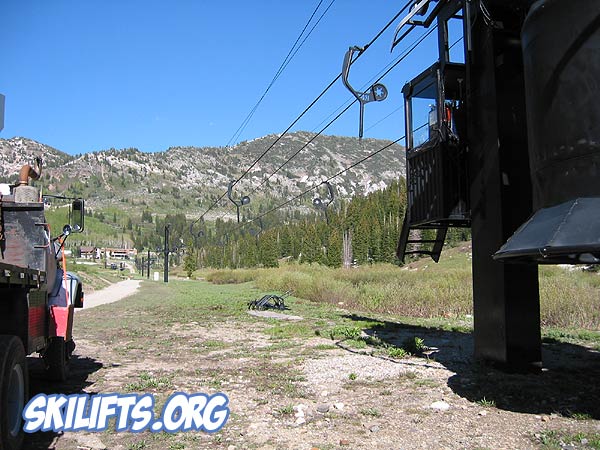

Looking Down The Lift Line
Transfer Tow at Alta
A Sheave Assembly
Transfer Tow at Alta

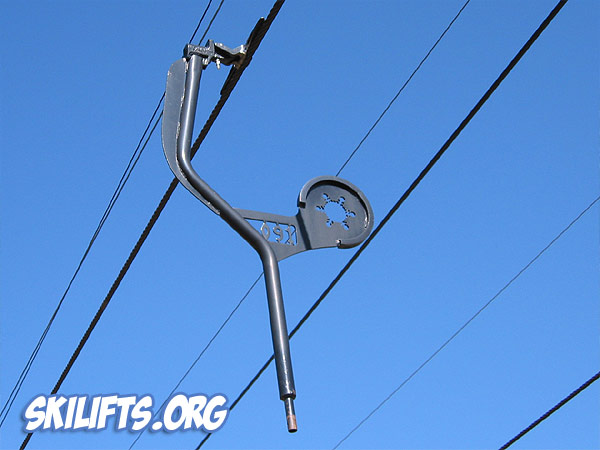

One Of The Tow Hangers
Transfer Tow at Alta
Looking Down The Lift Line
Transfer Tow at Alta

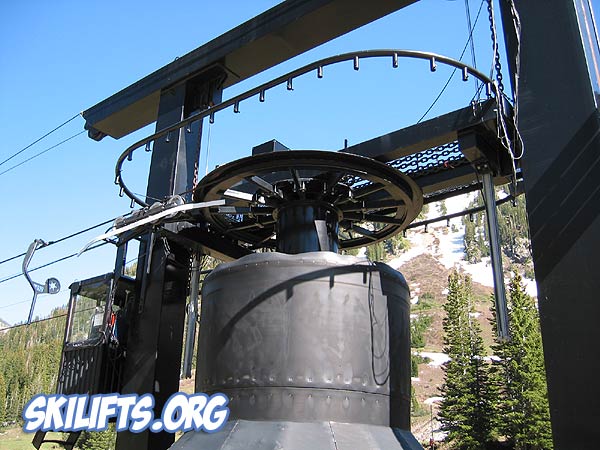

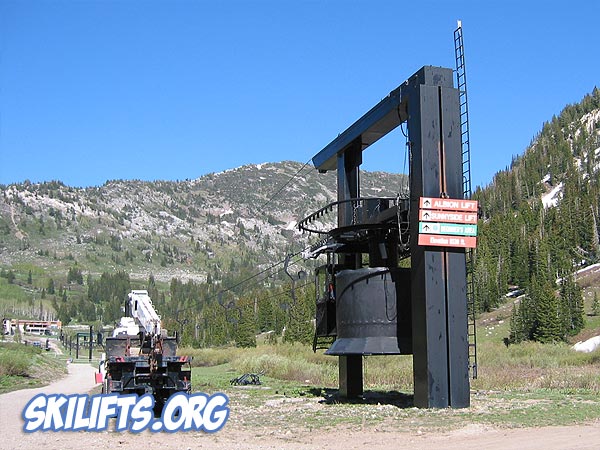

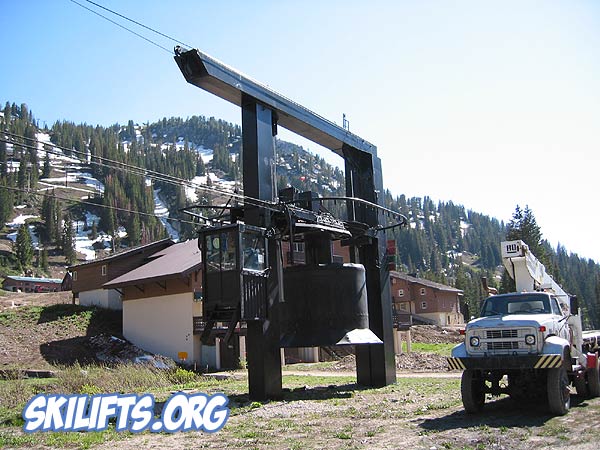

The Top Station
Transfer Tow at Alta
The Top Station
Transfer Tow at Alta
The Top Station
Transfer Tow at Alta

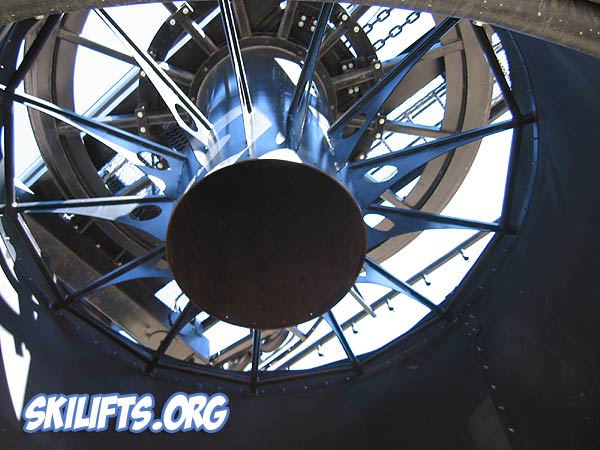

Looking Up Into The Tube
Transfer Tow at Alta

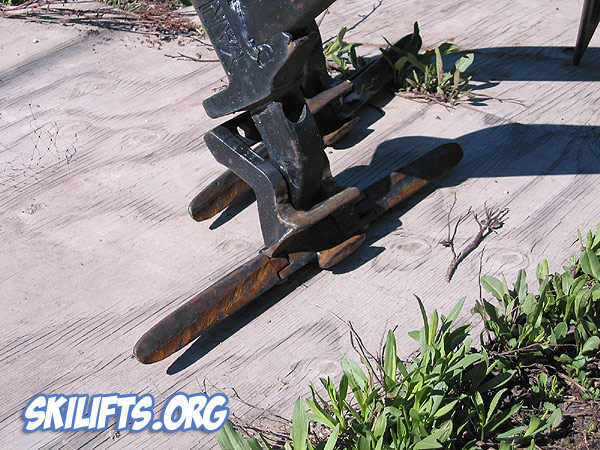

One of the Tow's Grips
Lift Stats:
Manufacturer:  Lift Engineering (YAN)
Type:  Yan Tow
Installed:  1992
Drive:  At bottom station
Tensioning:  At top station (hydraulic tensioning)
Motor: 75 HP DC Regenerative
Motor rating, continuous: N/A kW
Motor rating, starting:  N/A kW
Haul rope diameter:  1-1/4 in. 6X25 fiber core
Tow rope diameter:  1 in.
Rope guage:  3.35 m
Max rope tension:  25,000 lbs
Vertical rise: 108 ft / 33 m
Inclined length:  2,482 ft / 756.5 m

Speed on line:

500 fpm / 4.31 m/s
Speed in station: 500 fpm / 4.31 m/s
Number of towers:  6
Number of hnagers:  104 pcs.
Capacity:  3,000 P/h, 3 people per rope belly
Ride time:  N/A minutes

Chair parking:

N/A

Other notes:

N/A
     >
