World Cup Triple - Waterville Valley
World Cup Triple at Waterville Valley

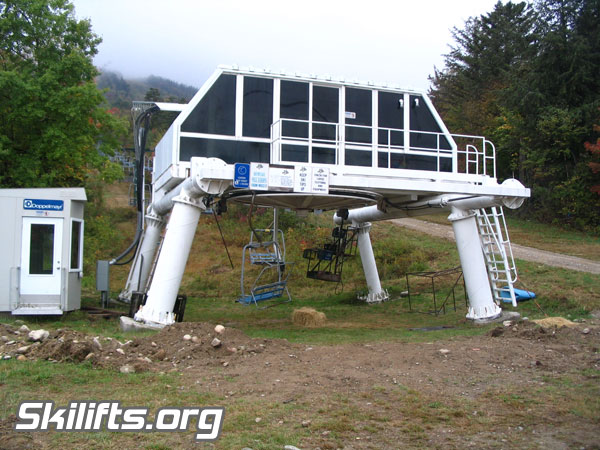

The Bottom Station
World Cup Triple at Waterville Valley

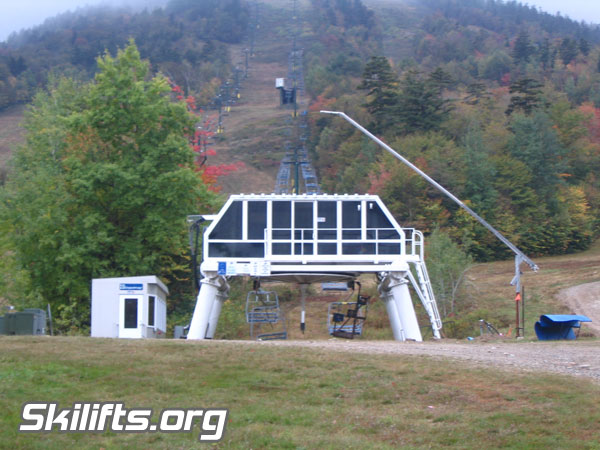

An Overview of the Lift
World Cup Triple at Waterville Valley

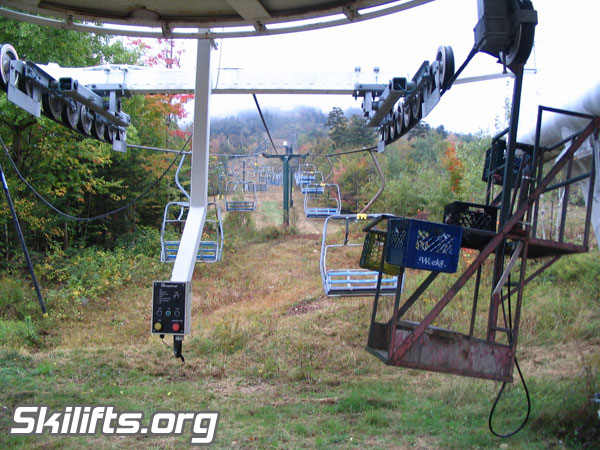

Looking Up the Lift Line
World Cup Triple at Waterville Valley

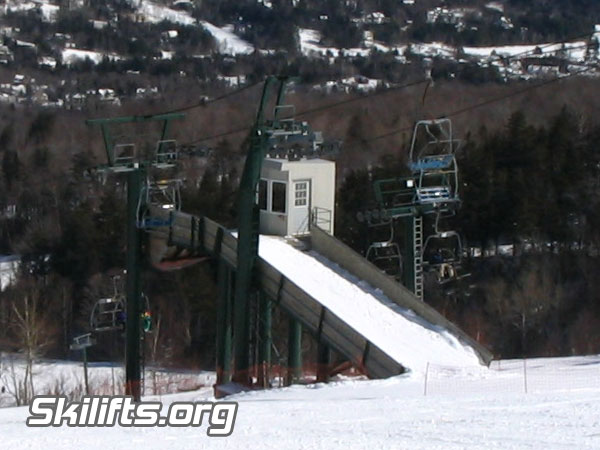

The Mid Station
World Cup Triple at Waterville Valley

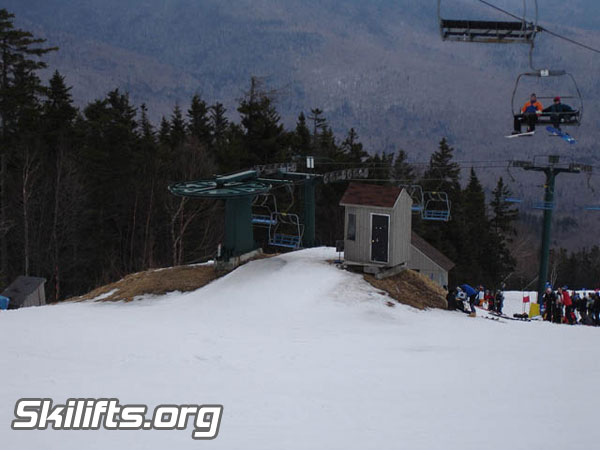

The Top Station
Courtesy Jeremy Clark
Lift Stats:
Manufacturer:  Stadeli/Doppelmayr
Type:  Triple
Installed:  1985
Drive:  At Bottom Station
Tensioning:  At Bottom Station
Motor: N/A HP
Motor rating, continuous: N/A kW
Motor rating, starting:  N/A kW
Haul rope diameter:  N/A mm
Rope guage:  N/A m
Vertical rise: 1,071 ft / 326.44 m
Inclined length:  4,203 ft / 1,281.07 m

Speed on line:

475 fpm / 2.41 m/s
Speed in station: 475 fpm / 2.41 m/s
Number of towers:  N/A
Number of carriers:  N/A pcs.
Capacity:  1,800 P/h
Ride time:  ~9 minutes

Chair parking:

N/A

Other notes:

This lift was originally built in 1985 by Albertsson-Stadeli as a supplement to the Summit Double chair that ran next to it. In June of 2000 the lift was struck by lightning causing massive damage to the drive terminal, lift shack and snapping the cable. Doppelmayr was called in after the incident to fix the lift as well as install a new mid-station.
