North Peak - Loon Mountain
North Peak at Loon Mountain

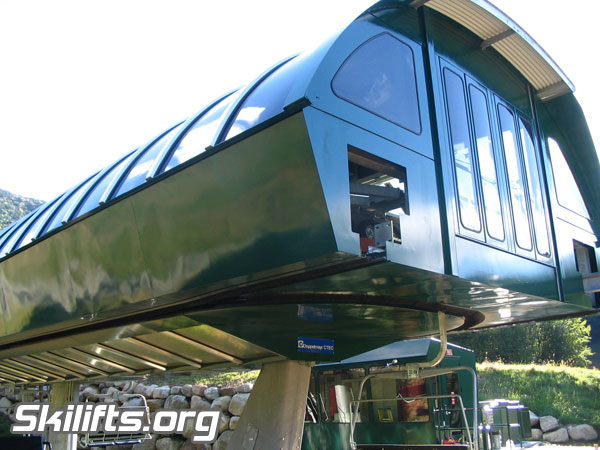

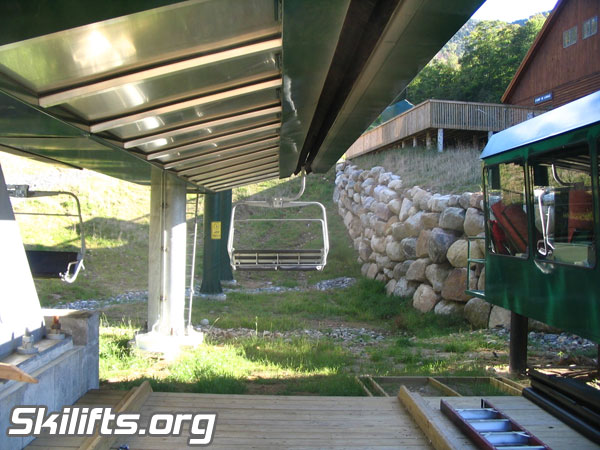

The Bottom Station
North Peak at Loon Mountain
The Bottom Station
North Peak at Loon Mountain

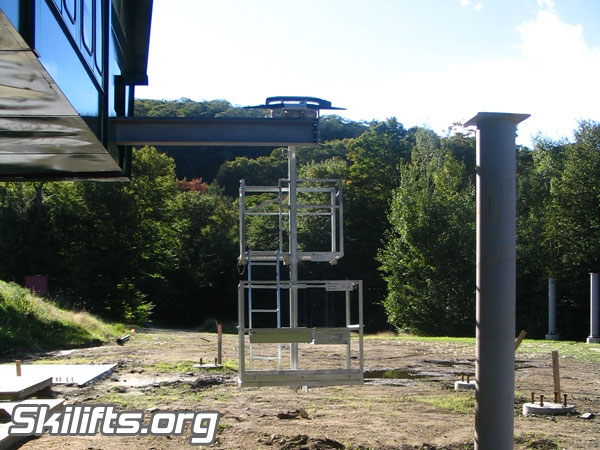

The Line Maintenance Carrier
North Peak at Loon Mountain

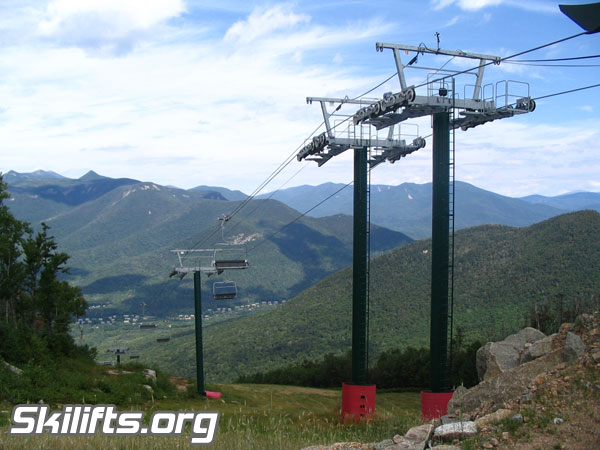

Looking Up the Lift Line
North Peak at Loon Mountain
Looking Down the Lift Line
North Peak at Loon Mountain

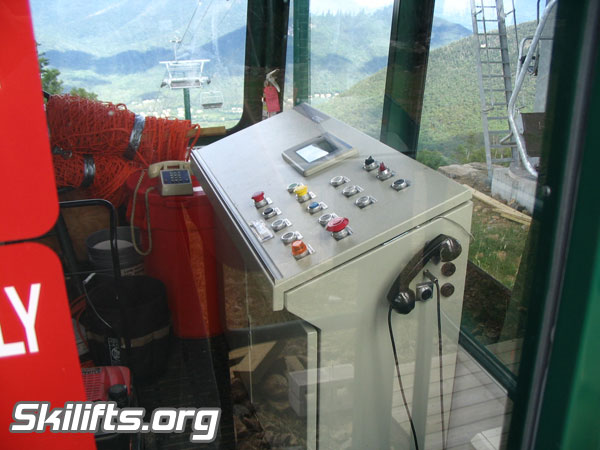

The Top Shack
North Peak at Loon Mountain

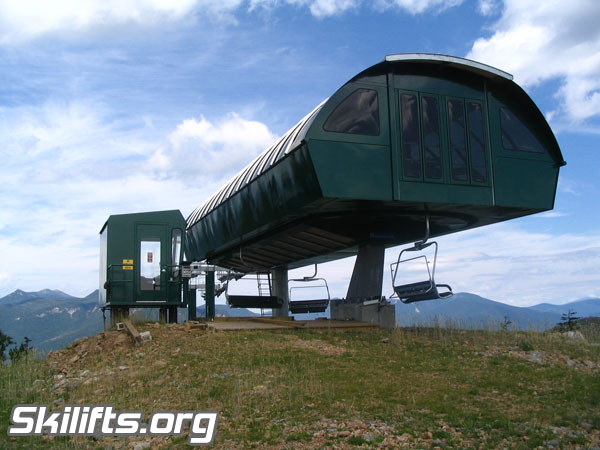

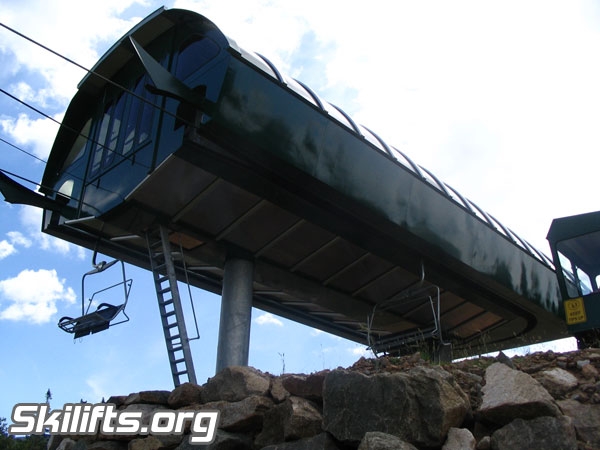

The Top Station
North Peak at Loon Mountain
The Top Station
Lift Stats:
Manufacturer:  Doppelmayr CTEC
Type:  High-Speed Quad
Installed:  2004
Drive:  At bottom station
Tensioning:  At top station
Motor: 800 HP
Motor rating, continuous: N/A kW
Motor rating, starting:  N/A kW
Haul rope diameter:  41 mm
Line guage:  4.85 m
Vertical rise: 1,563 ft / 476.40 m
Inclined length:  4,820 ft / 1,469.14 m

Speed on line:

1,000 fpm / 5.08 m/s
Speed in station: 3.02 fps / 1 m/s
Number of towers:  18
Number of carriers:  73 (initial) 120 (design) pcs.
Capacity:  1,700 (initial) 2800 (design) P/h
Ride time:  4.8 minutes

Chair parking:

100% parking and carrier maintenance building at bottom station.

Other notes:

Any future increase in uphill capacity is contingent on new trail construction on North Peak.
