North Peak - Loon Mountain |
Lift Stats: |
Manufacturer: | Doppelmayr CTEC |
Type: | High-Speed Quad |
Installed: | 2007 |

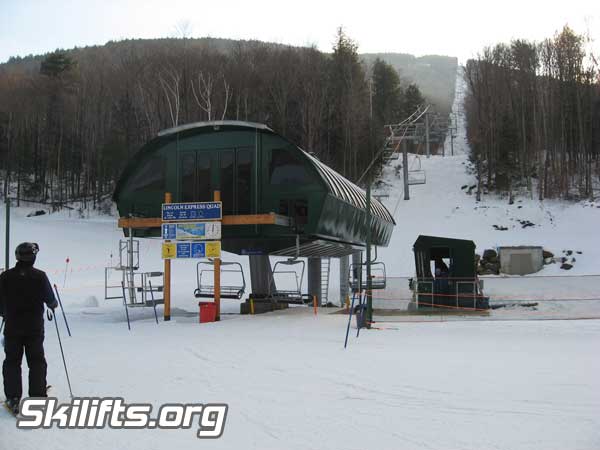

Drive: | At bottom station |

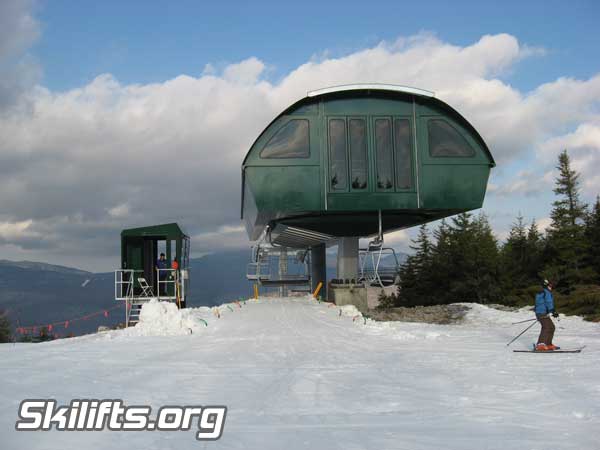

Tensioning: | At top station |
Motor: | 900 HP |
Motor rating, continuous: | N/A kW |
Motor rating, starting: | N/A kW |
Haul rope diameter: | 41 mm |
Rope guage: | 4.8 m |
Vertical rise: | 1,475 ft / 476.40 m |
Inclined length: | 5,474 ft / 1,469.14 m |
Speed on line: |
1,000 fpm / 5.08 m/s |
Speed in station: | 3.02 fps / 1 m/s |
Number of towers: | 21 |
Number of carriers: | 95 (actual), 118 (initial), 139 (design) |
Capacity: | 2,400 (initial), 2,800 (design) P/h |
Ride time: | 5.7 minutes |
Chair parking: |
20% carrier parking at bottom station |
Other notes: |
Carrier maintenance building at bottom station. |
