Rangley - Saddleback Ski Area
Rangley at Saddleback Ski Area

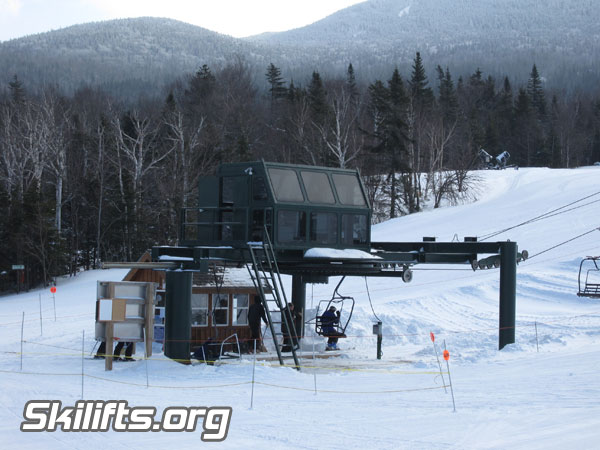

The Bottom Station
Rangley at Saddleback Ski Area

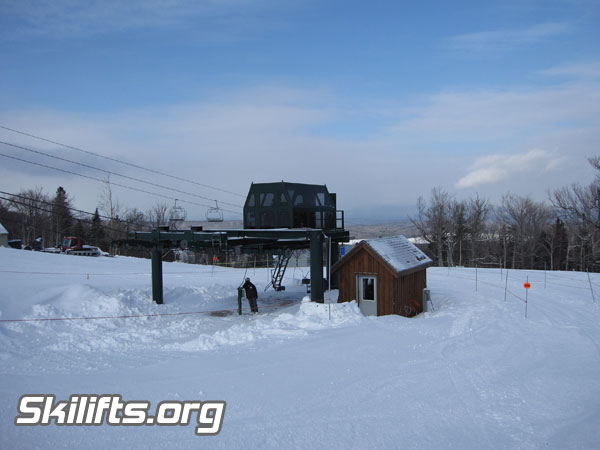

The Bottom Station
Rangley at Saddleback Ski Area

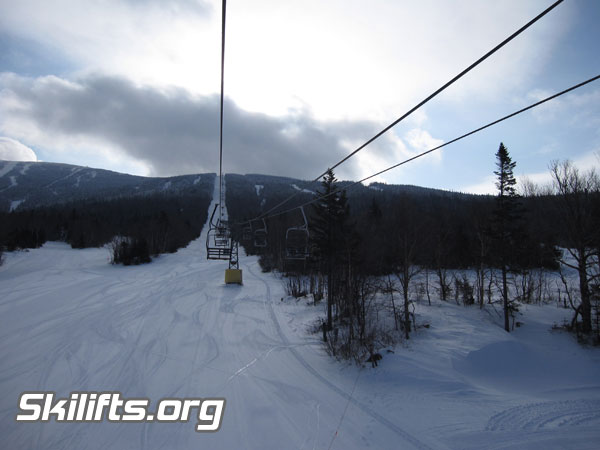

Looking Up the Lift Line
Rangley at Saddleback Ski Area

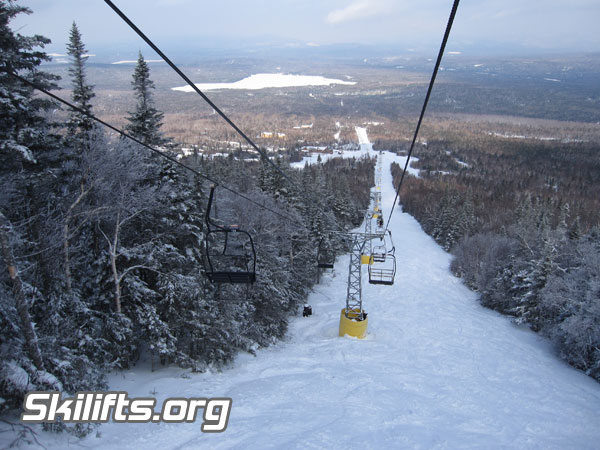

Looking Down the Lift Line
Rangley at Saddleback Ski Area

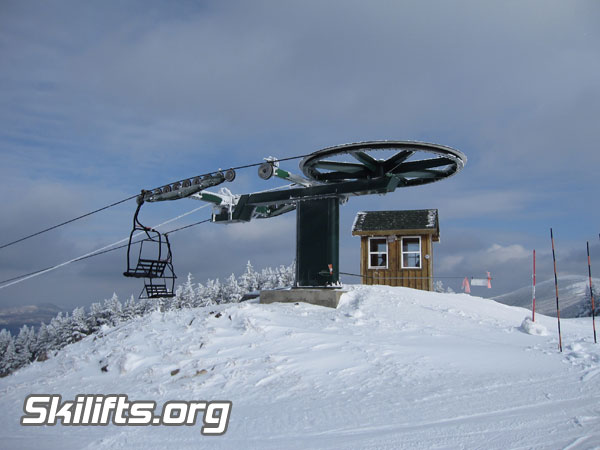

The Top Station
Lift Stats:
Manufacturer:  Mueller/Borvig/Doppelmayr/CTEC
Type:  Fixed-Grip Quad
Installed:  1963
Drive:  At Bottom Station
Tensioning:  At Bottom Station
Motor: N/A HP
Motor rating, continuous: N/A kW
Motor rating, starting:  N/A kW
Haul rope diameter:  N/A mm
Rope guage:  N/A m
Vertical rise: 1,177 ft / 358.75 m
Inclined length:  4,717 ft / 1,446.89 m

Speed on line:

N/A fpm / N/A m/s
Speed in station: N/A fpm / N/A m/s
Number of towers:  N/A
Number of carriers:  N/A pcs.
Capacity:  1,000 P/h
Ride time:  N/A minutes

Chair parking:

N/A

Other notes:

This lift was originally built by Mueller with a bottom drive and top tension. The lift was later updated by Borvig with new chairs sometime in the 80s or 90s. The lift was then further modified in 2004 by Doppelmayr/CTEC with new drive and return terminals and the bottom terminal was moved downhill 200 feet (60 meters) from it's original location.
