| Manufacturer:
|
POMA |
| Type:
|
High-speed quad |
| Installed:
|
1985 |
| Installed:
|
2005 |
| Drive:
|

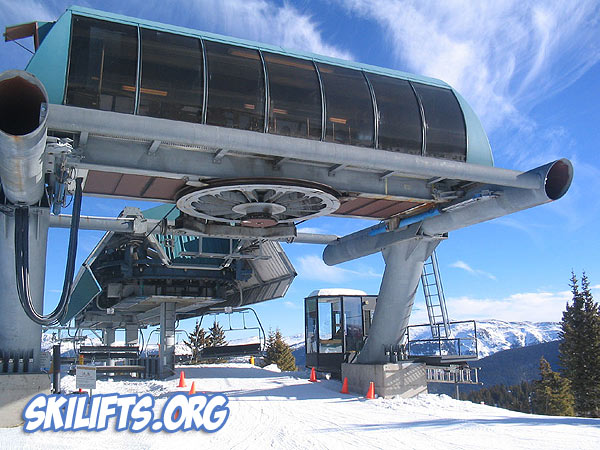

At top station |
| Tensioning: |
At bottom station |
| Motor: |
825 HP |
| Motor rating, continuous: |
N/A kW |
| Motor rating, starting:
|
N/A kW |
| Haul rope diameter:
|
N/A |
| Rope guage: |
4.8 m |
| Vertical rise: |
1,766 ft / 490.1 m |
| Inclined length:
|
6,978 ft / 2,126.9 m |
| Speed on line:
|
900 fpm / 4.57 m/s |
| Speed in station: |
N/A fpm / N/A m/s |
| Number of towers:
|
23 |
| Number of chairs:
|
145 (Chair #94 missing) |
| Capacity: |
2,800 P/h |
| Ride time: |
N/A minutes |
| Chair parking:
|
Manual emergency rail at bottom station |
| Other notes:
|
This lift was relocated to Mission Ridge Ski Area,
Washington. |
