Chondola (1) - Telluride
Chondola at Telluride, CO

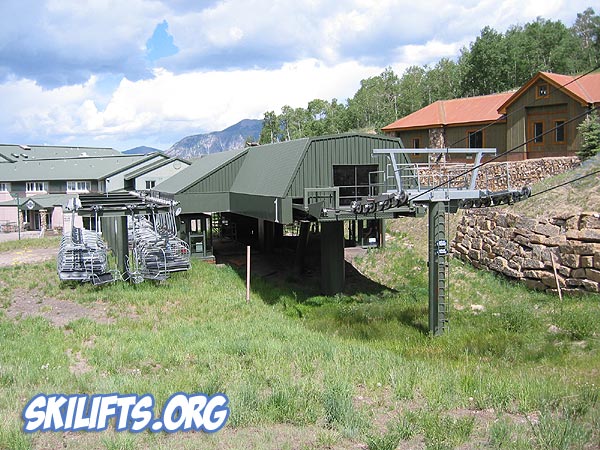

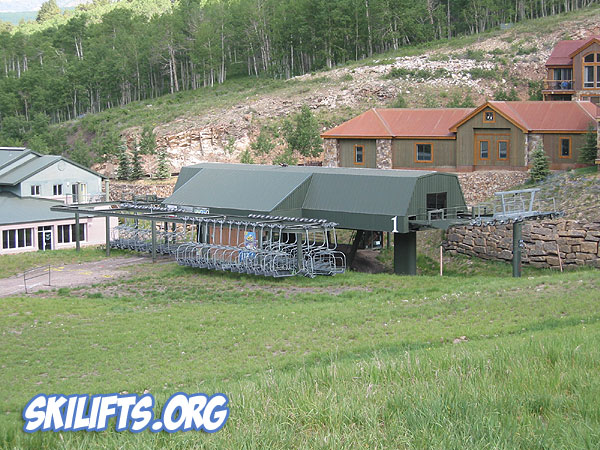

The Lower Station
Chondola at Telluride, CO

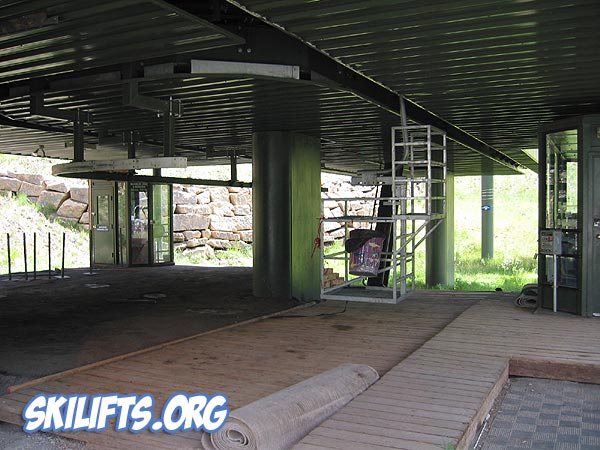

The Lower Station
Chondola at Telluride, CO

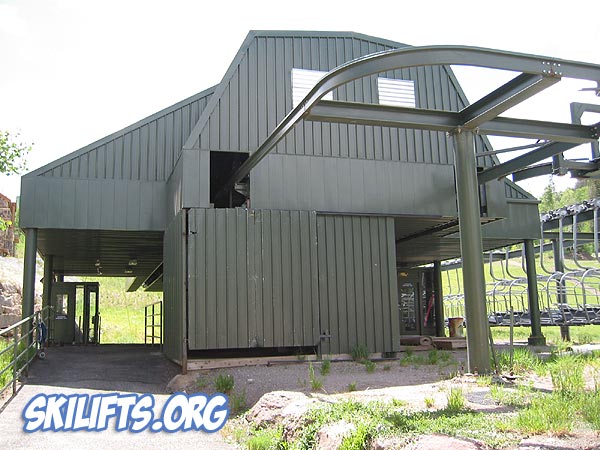

The Lower Station
Chondola at Telluride, CO

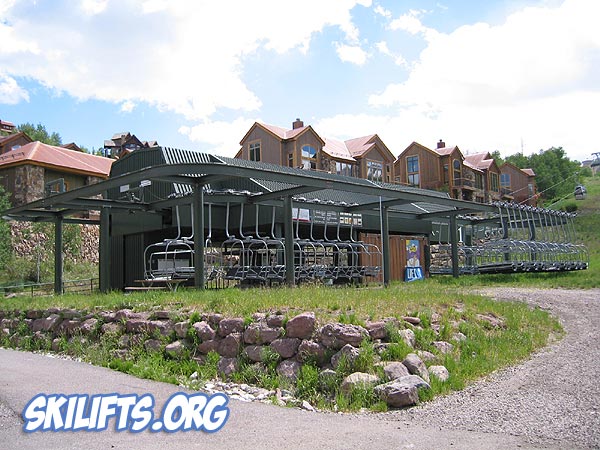

The Lower Station
Chondola at Telluride, CO

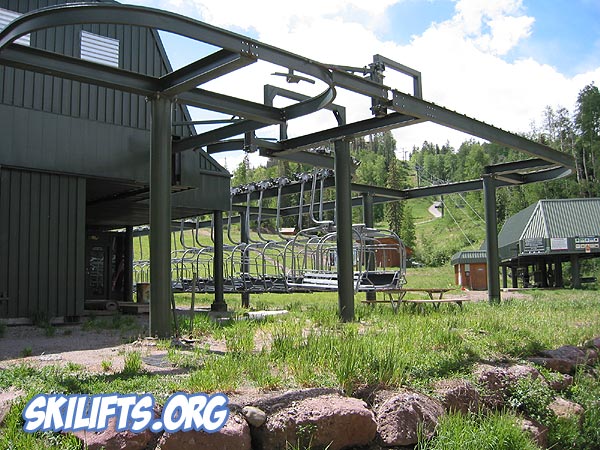

The Chair Rail
Chondola at Telluride, CO
The Lower Station
Chondola at Telluride, CO

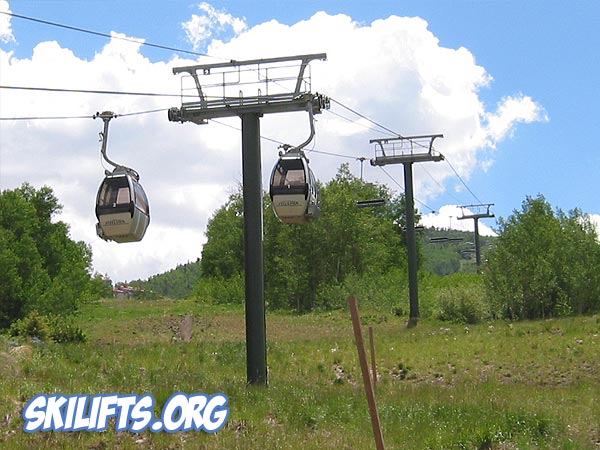

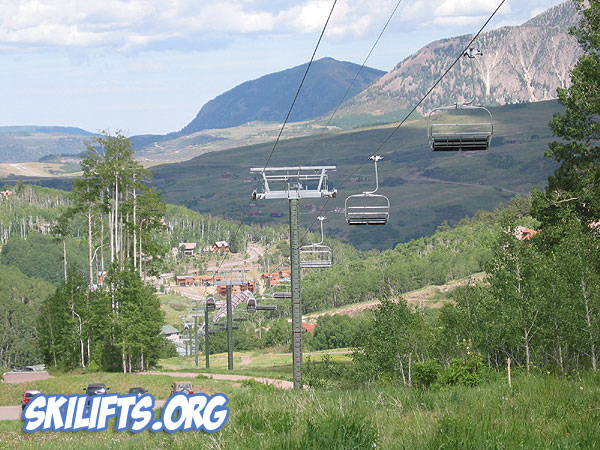

The Lift Line
Chondola at Telluride, CO

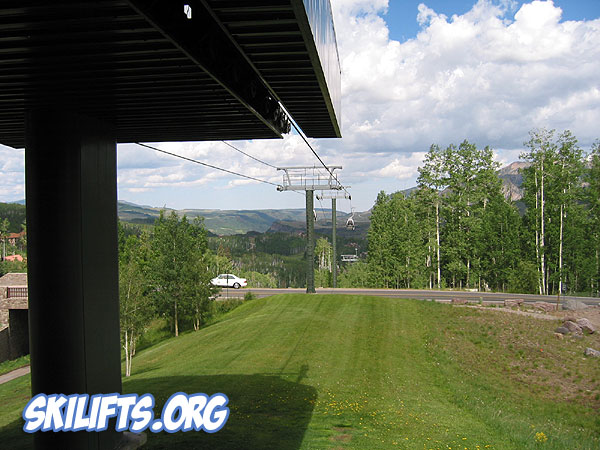

The Lift Line
Chondola at Telluride, CO
The Lift Line

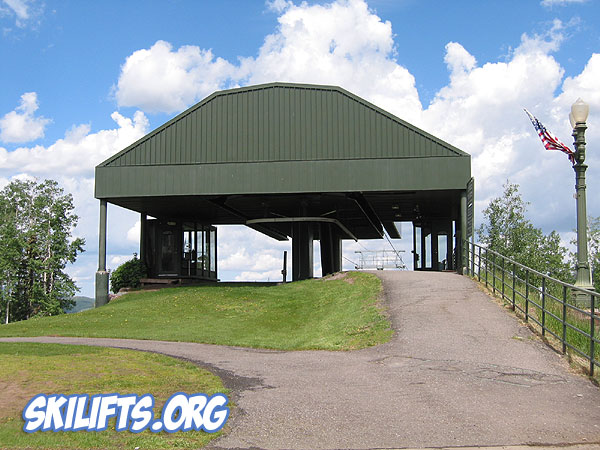

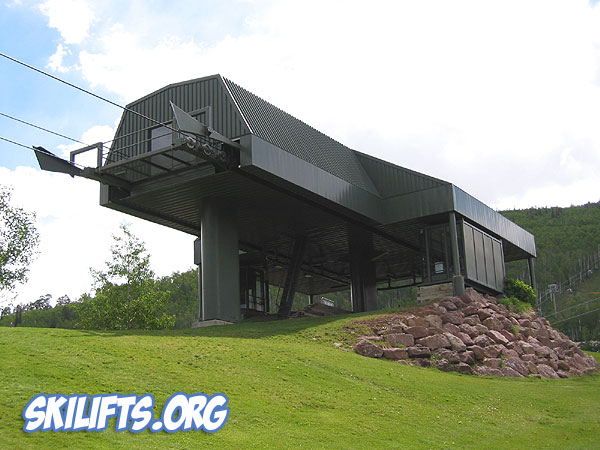

The Top Station
Chondola at Telluride, CO

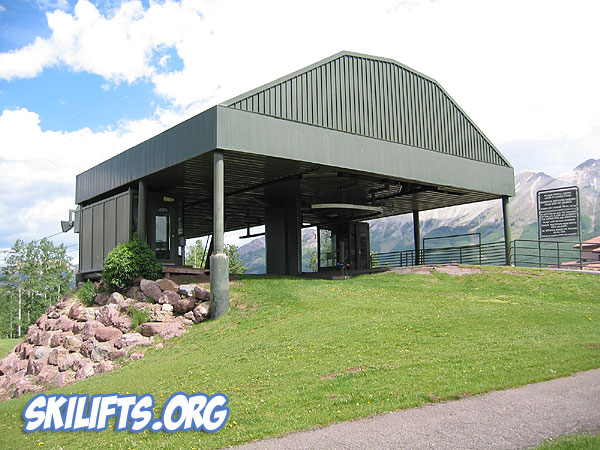

The Top Station
Chondola at Telluride, CO
The Top Station
Lift Stats:
Manufacturer:  Garaventa CTEC
Type:  Chondola (4C-Det./Gondola (4)
Installed:  1995
Drive:  At bottom station
Tensioning:  At top station
Motor: 300 HP
Motor rating, continuous: N/A kW
Motor rating, starting:  N/A kW
Haul rope diameter:  N/A mm
Rope guage:  4.8 m
Vertical rise: 117.3 m
Inclined length:  887 m

Speed on line:

4.06 m/s
Speed in station: 1 m/s
Number of towers:  10
Number of chairs:  N/A
Capacity:  2,000 P/h
Ride time:  4 minutes

Chair parking:

At bottom station

Other notes:

N/A
