Silver Queen Express - Crested Butte
Silver Queen Express at Crested Butte, CO

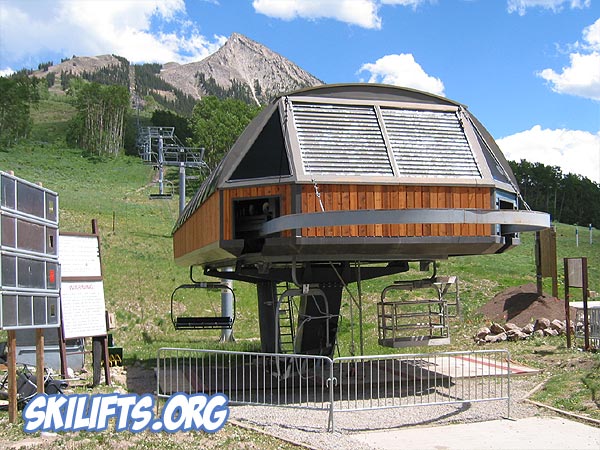

The Lower Station
Silver Queen Express at Crested Butte, CO

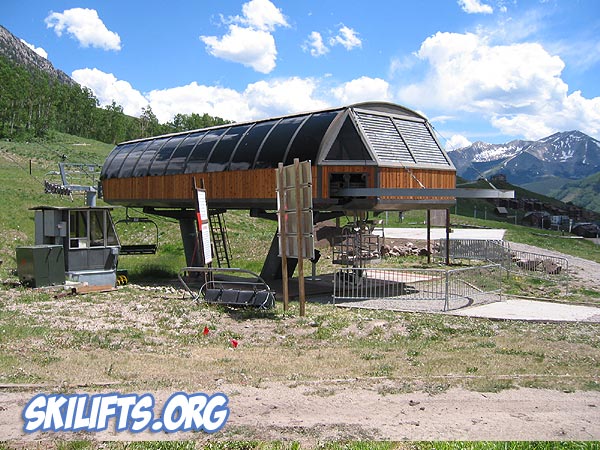

The Lower Station & Lift Line
Silver Queen Express at Crested Butte, CO

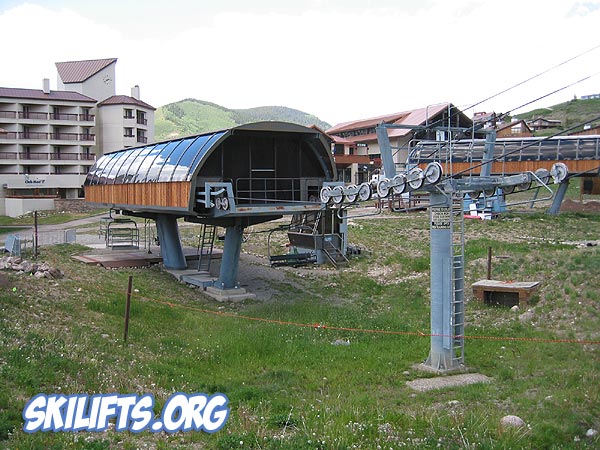

The Lower Station
Silver Queen Express at Crested Butte, CO

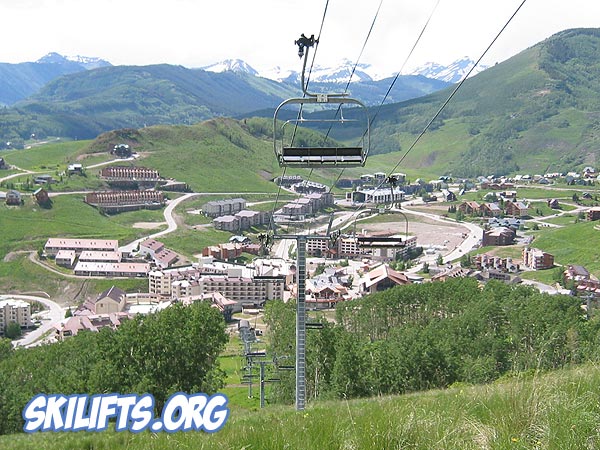

Looking Down The Lift Line
Silver Queen Express at Crested Butte, CO

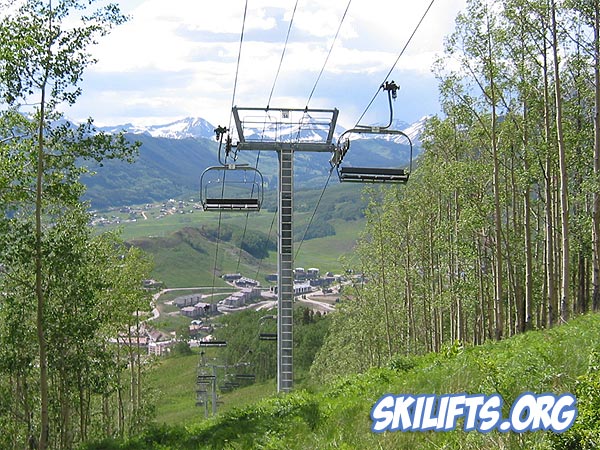

Looking Down The Lift Line
Silver Queen Express at Crested Butte, CO

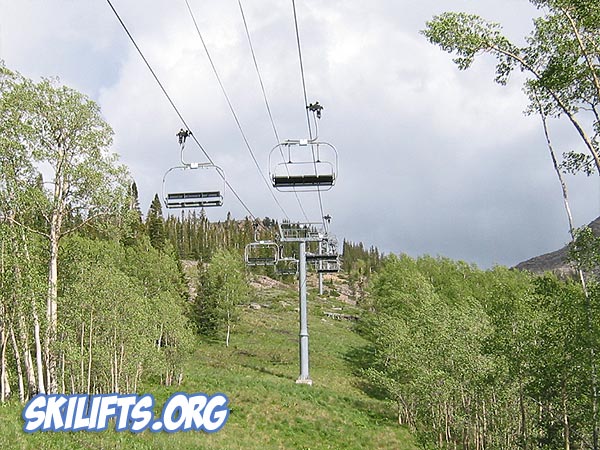

Looking Up The Lift Line
Lift Stats:
Manufacturer:  POMA
Type:  High-speed quad
Installed:  1992
Drive:  At top station
Tensioning:  At bottom & top station
Motor: 800 HP
Motor rating, continuous: N/A kW
Motor rating, starting:  N/A kW
Haul rope diameter:  N/A mm
Rope guage:  4.8 m
Vertical rise: 627.2 m
Inclined length:  2,377.4 m

Speed on line:

5.60 m/s
Speed in station: 1 m/s
Number of towers:  N/A
Number of chairs:  N/A
Capacity:  2,400 P/h
Ride time:  7 minutes

Chair parking:

Manual emergency rail at bottom station

Other notes:

N/A
