American Eagle - Copper Mountain
American Eagle at Copper Mountain

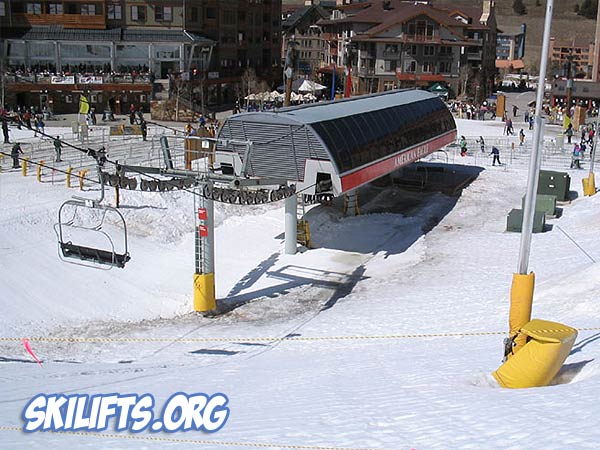

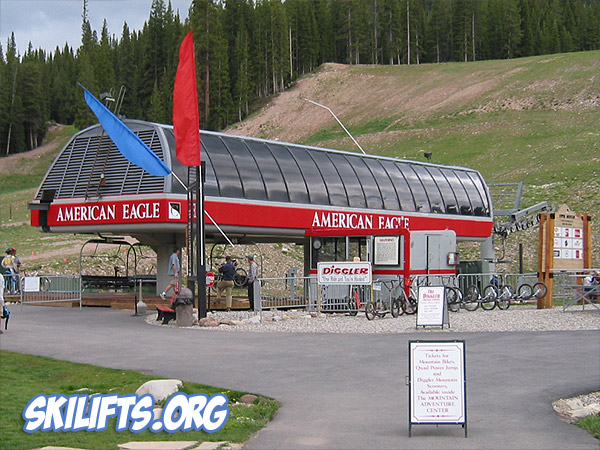

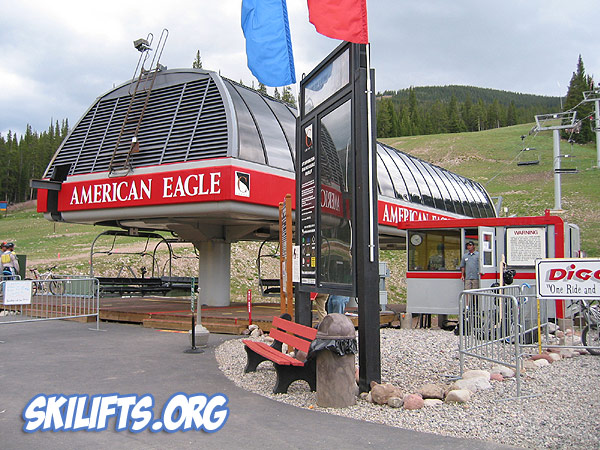

The Lower Station
American Eagle at Copper Mountain
The Lower Station
American Eagle at Copper Mountain
The Lower Station
American Eagle at Copper Mountain

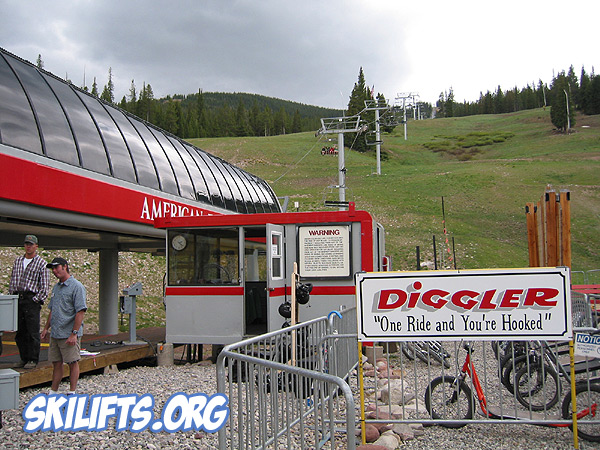

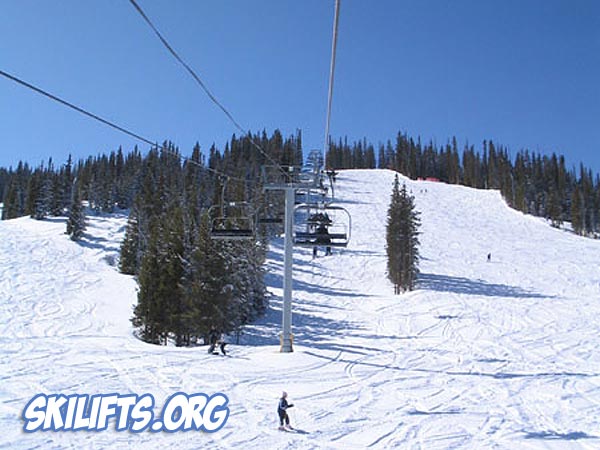

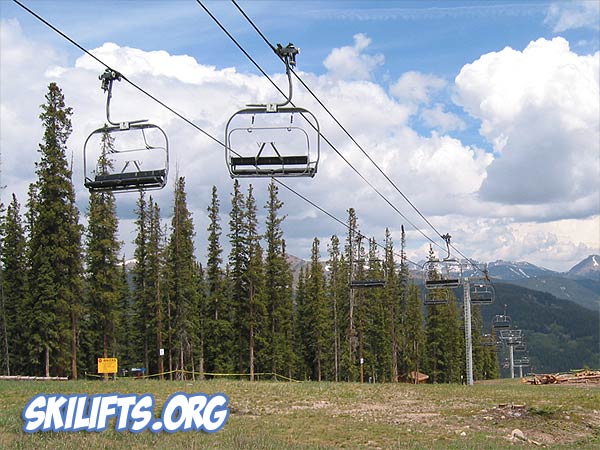

Looking Up The Lift Line
American Eagle at Copper Mountain
Looking Up The Lift Line
American Eagle at Copper Mountain

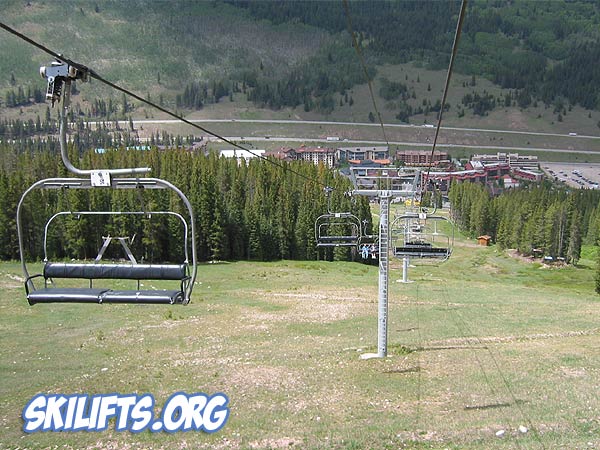

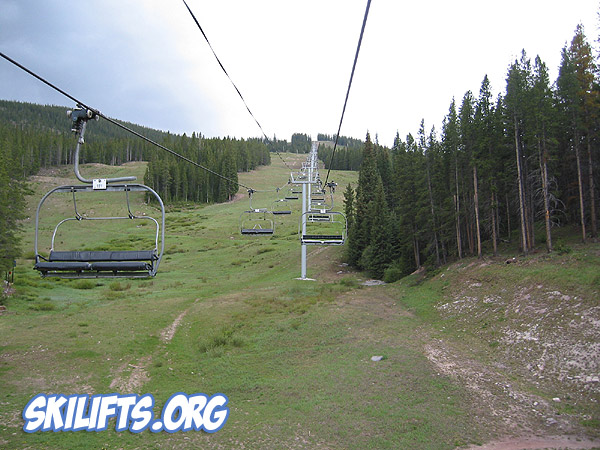

Looking Down The Lift Line
American Eagle at Copper Mountain
Looking Up The Lift Line
American Eagle at Copper Mountain
Looking Down The Lift Line
American Eagle at Copper Mountain

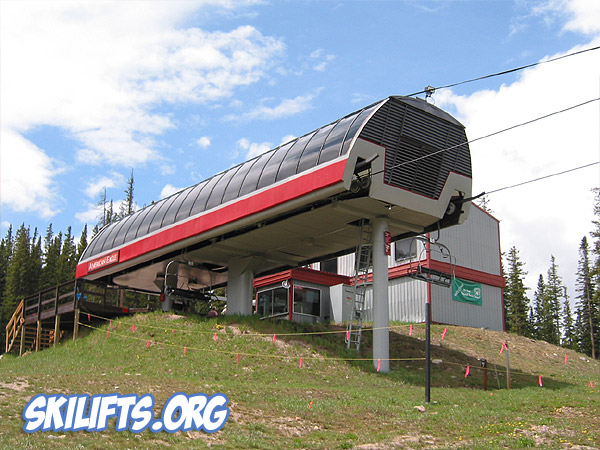

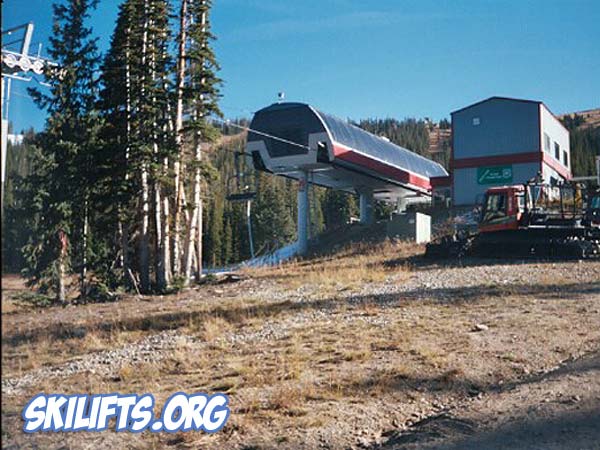

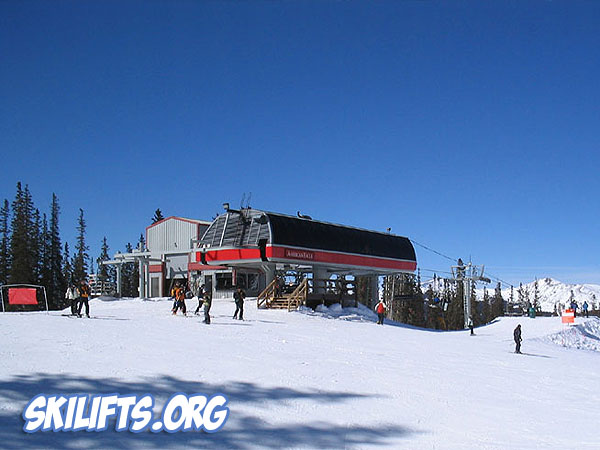

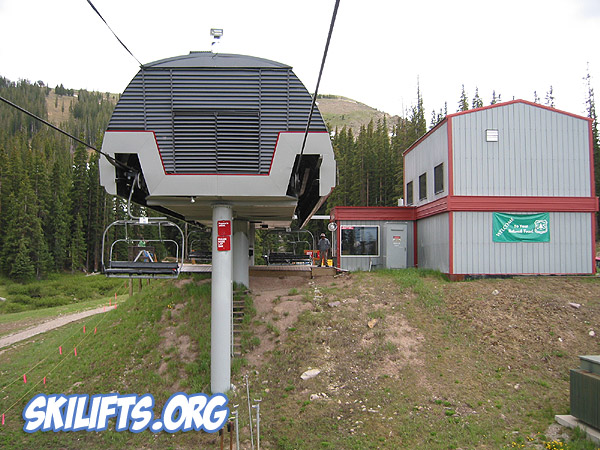

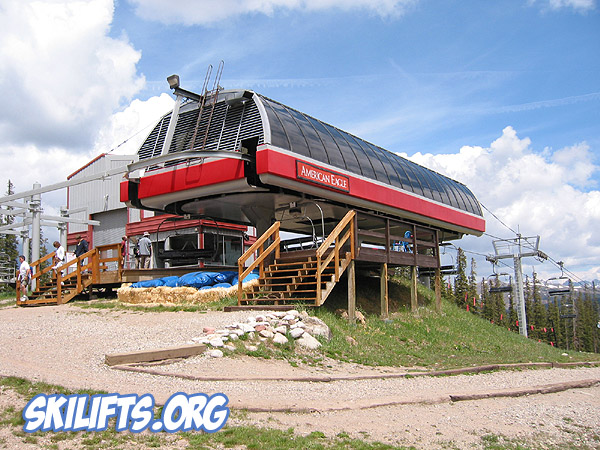

The Top Station
American Eagle at Copper Mountain
The Top Station
American Eagle at Copper Mountain
The Top Station
American Eagle at Copper Mountain
The Top Station
American Eagle at Copper Mountain
The Top Station
American Eagle at Copper Mountain

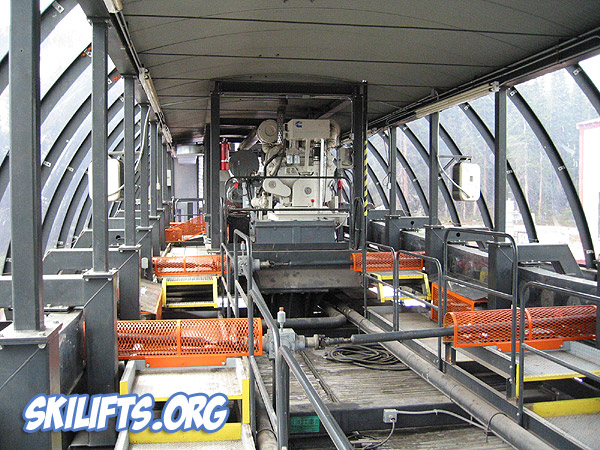

Inside The Top Station
American Eagle at Copper Mountain

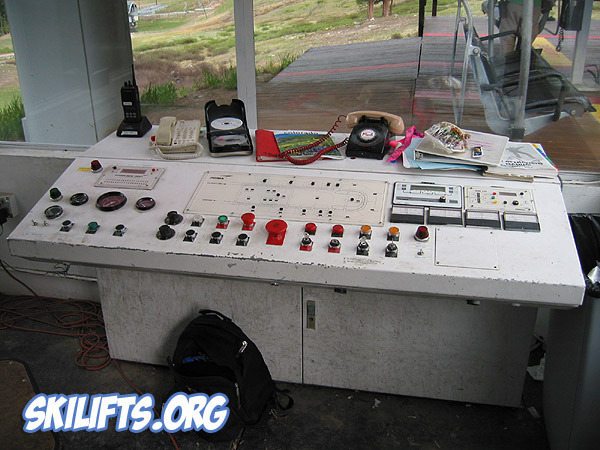

The Lift Operator's Controls
Lift Stats:
Manufacturer:  POMA
Type:  High-speed quad
Installed:  1989
Drive:  In top station; BBC Veritron DC w/regenerative capability
Tensioning:  In bottom station
Motor: BBC GN 1671 - 720 HP
Motor rating, continuous: N/A kW
Motor rating, starting:  N/A kW
Haul rope diameter:  42 mm 6x25 RLL XXIPS CSC
Rope guage:  4.8 m
Vertical rise: 450 m
Inclined length:  1,929 m

Speed on line:

5.08 m/s
Speed in station: 1.25 m/s
Number of towers:  24
Number of chairs:  125 pcs. 'TB-41 Competition'
Capacity:  2,800 P/h
Ride Time:  6.3 minutes

Chair parking:

In adjacent maintenance facility (top station)

Other notes:

N/A
