Snowflake - Breckenridge
Snowflake at Breckenridge

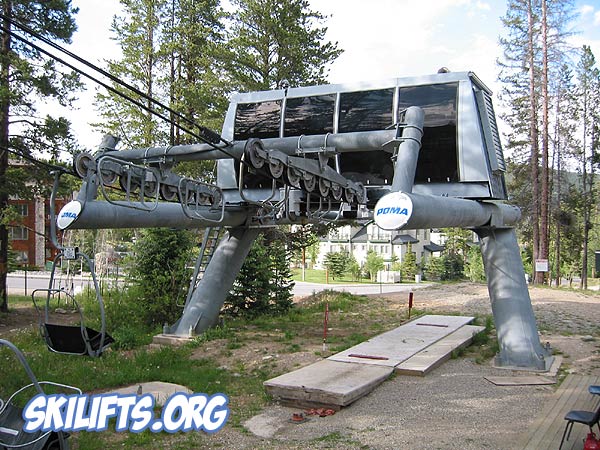

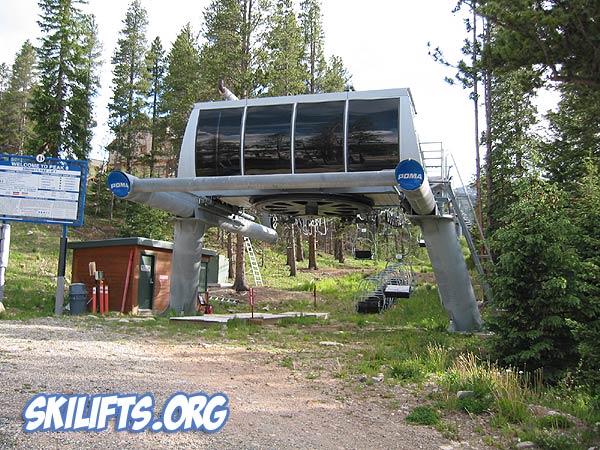

The Lower Station
Snowflake at Breckenridge
The Lower Station
Snowflake at Breckenridge

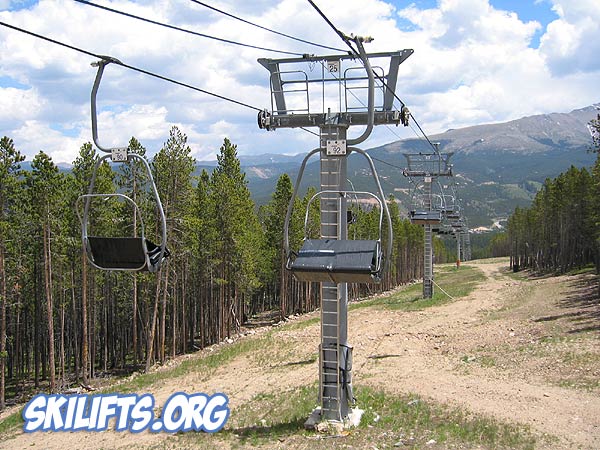

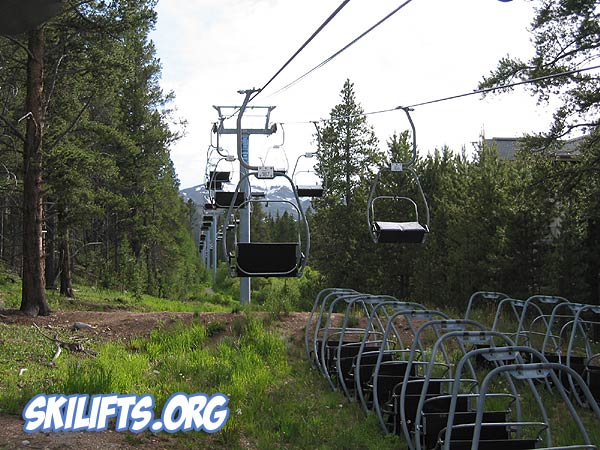

Looking Up The Lift Line
Snowflake at Breckenridge

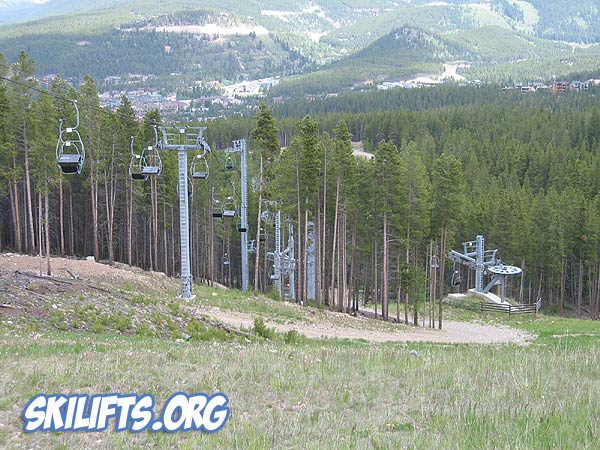

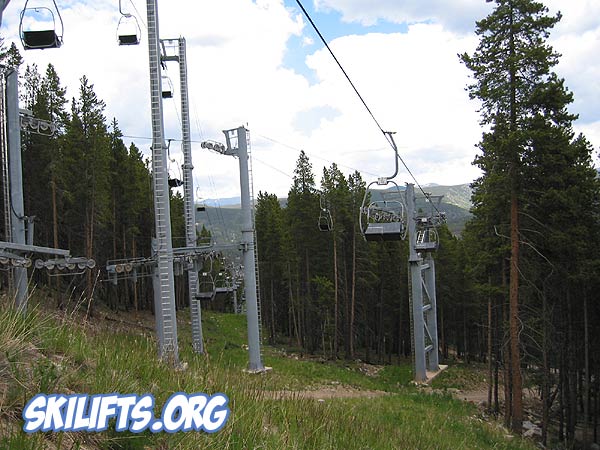

An Overview Of The Turn
Snowflake at Breckenridge

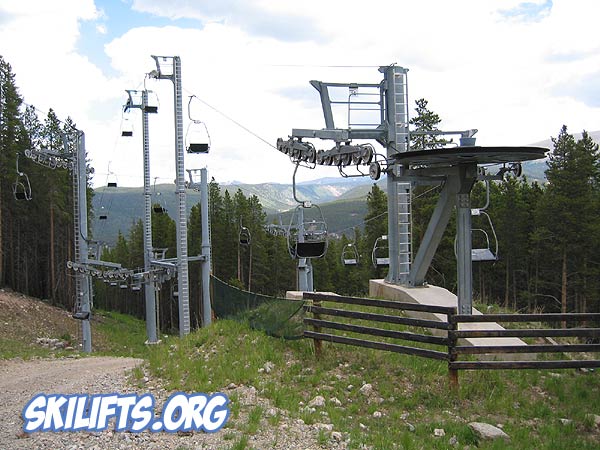

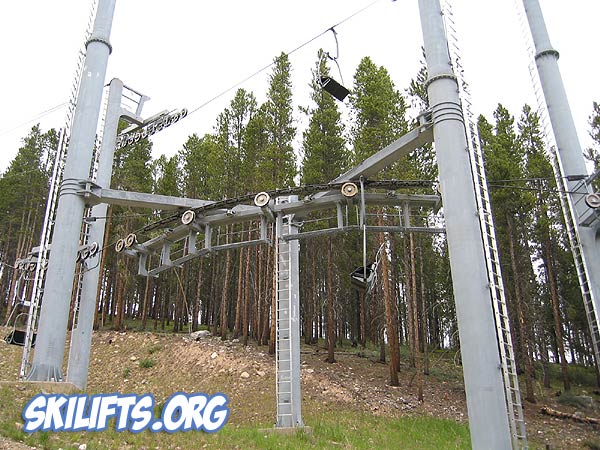

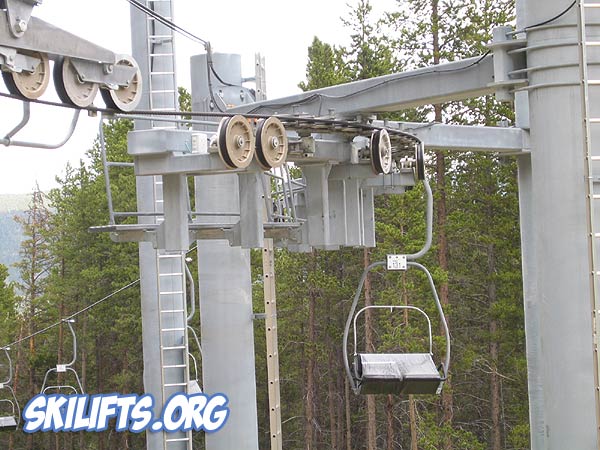

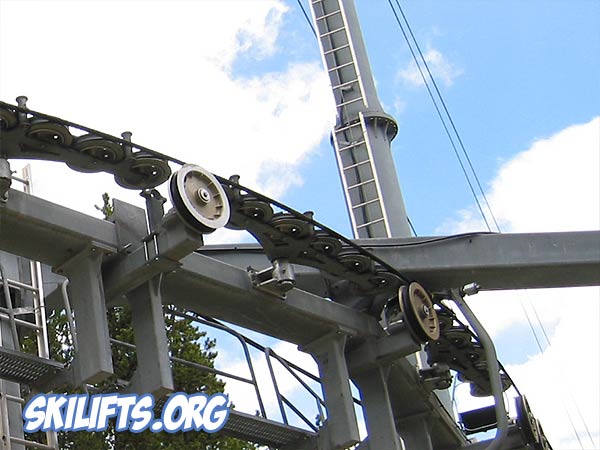

The Turn
Snowflake at Breckenridge
The Turn
Snowflake at Breckenridge
The Turn
Snowflake at Breckenridge
The Turn
Snowflake at Breckenridge
Looking Down At The Turn
Snowflake at Breckenridge

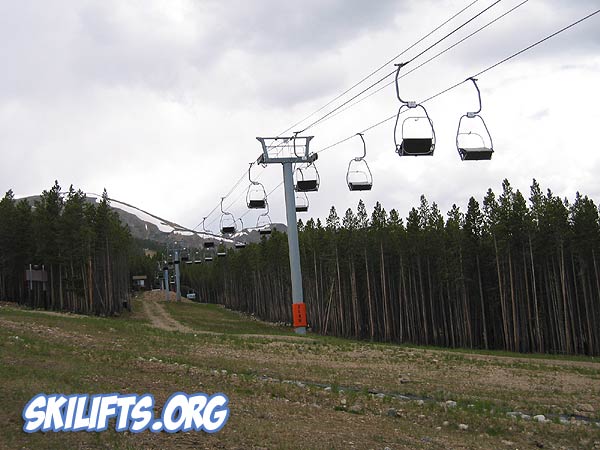

Looking Up The Lift Line
Snowflake at Breckenridge
Looking Down The Lift Line
Snowflake at Breckenridge

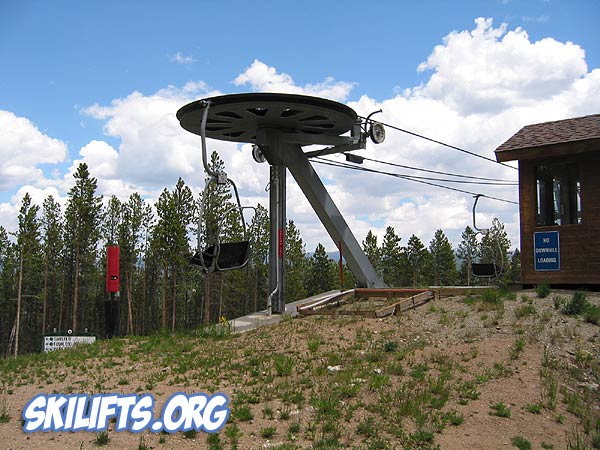

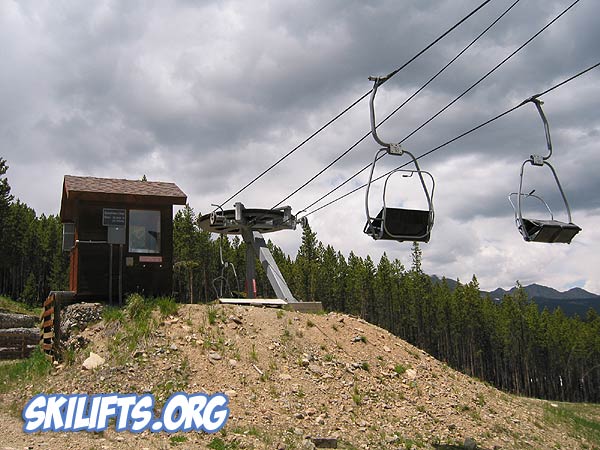

The Top Station
Snowflake at Breckenridge
The Top Station
Lift Stats:
Manufacturer:  POMA
Type:  Double
Installed:  1996
Drive:  At bottom station
Tensioning:  At bottom station
Motor: 250 HP
Motor rating, continuous: N/A kW
Motor rating, starting:  N/A kW
Haul rope diameter:  N/A
Rope guage:  N/A m
Vertical rise: 631 ft / 192.33 m
Inclined length:  5,322 ft / 1,622.15 m

Speed on line:

510 fpm / 2.60 m/s
Speed in station: 510 fpm / 2.60 m/s
Number of towers:  25
Number of chairs:  205 pcs.
Capacity:  1,200 P/h
Ride time:  12 minutes

Chair parking:

N/A

Other notes:

This lift has a midstation and turns about 70 degrees to the right.
