Peak 8 Super Connect - Breckenridge
Peak 8 Super Connect Super Chair at Breckenridge

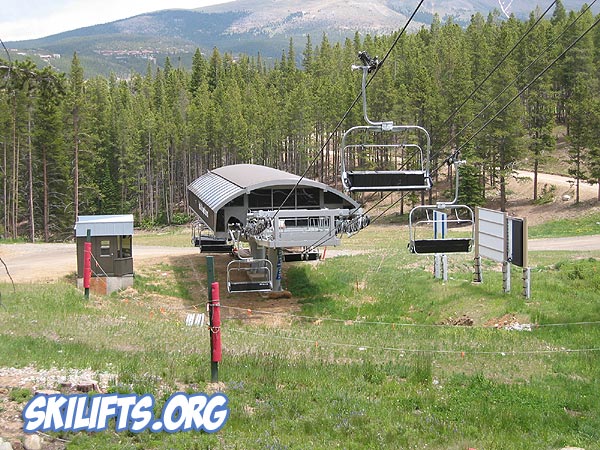

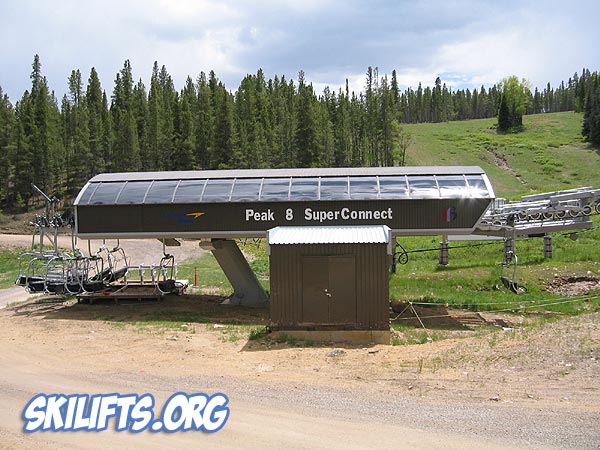

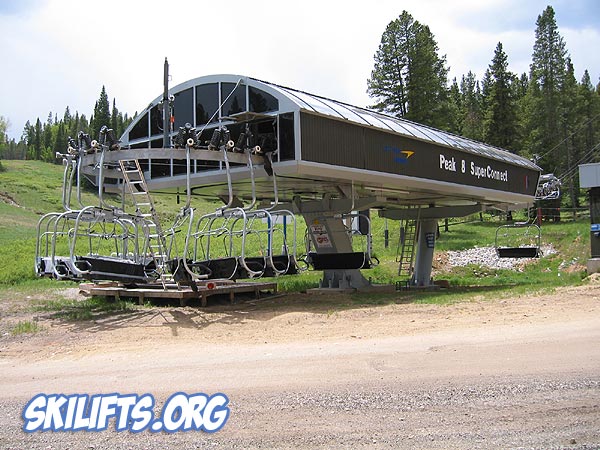

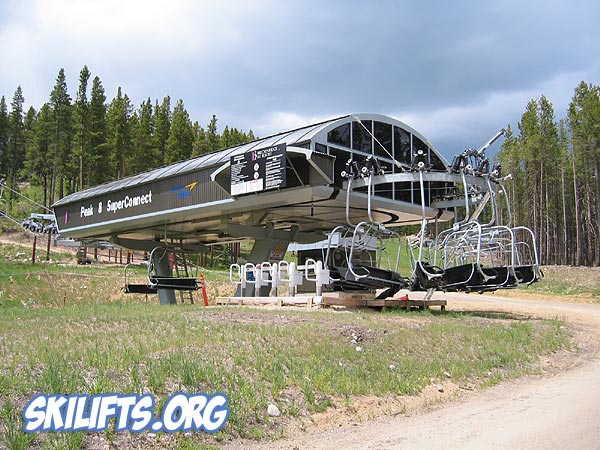

The Lower Station
Peak 8 Super Connect Super Chair at Breckenridge
The Lower Station
Peak 8 Super Connect Super Chair at Breckenridge
The Lower Station
Peak 8 Super Connect Super Chair at Breckenridge
The Lower Station
Peak 8 Super Connect Super Chair at Breckenridge

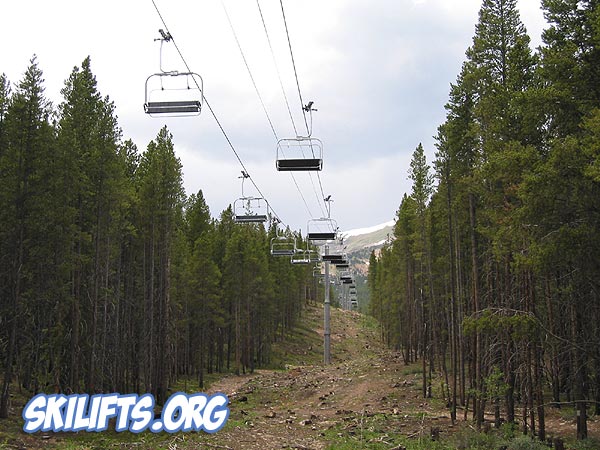

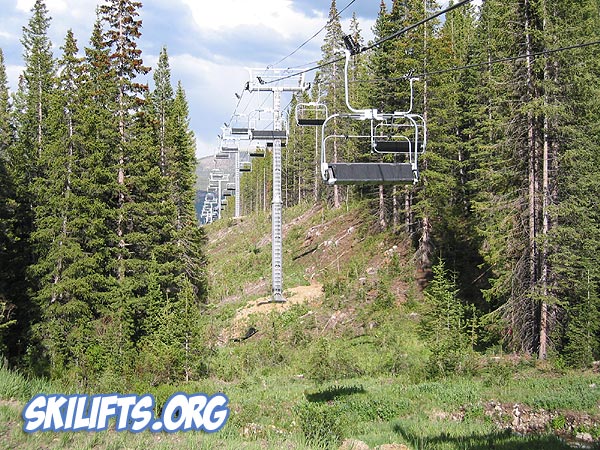

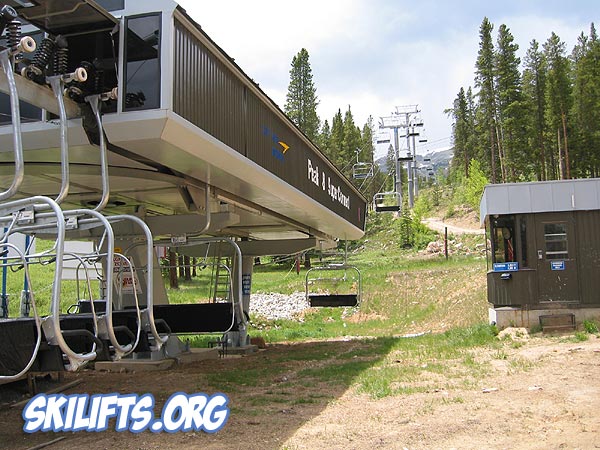

Looking Up The Lift Line
Peak 8 Super Connect Super Chair at Breckenridge

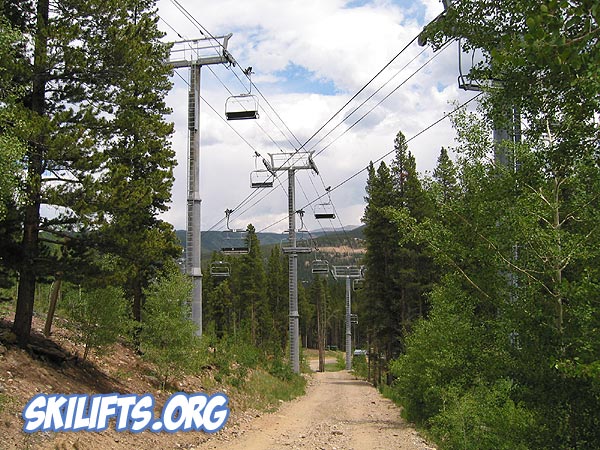

Beaver Run & Peak 8 Cross Over
Peak 8 Super Connect Super Chair at Breckenridge
Looking Up The Lift Line
Peak 8 Super Connect Super Chair at Breckenridge

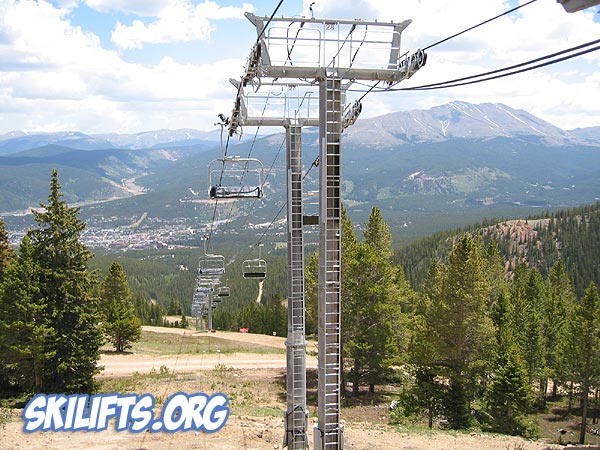

Looking Down The Lift Line
Peak 8 Super Connect Super Chair at Breckenridge

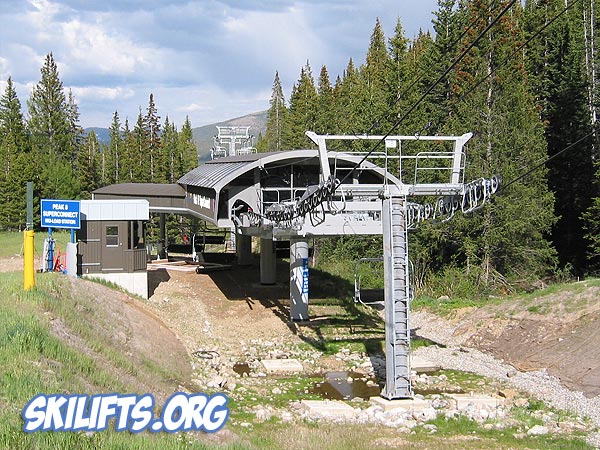

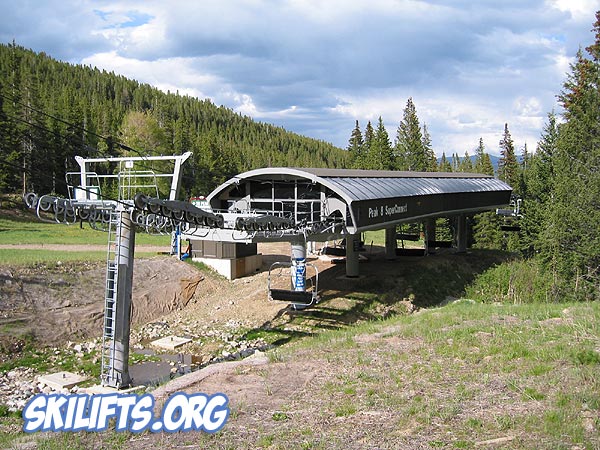

The Mid Station
Peak 8 Super Connect Super Chair at Breckenridge

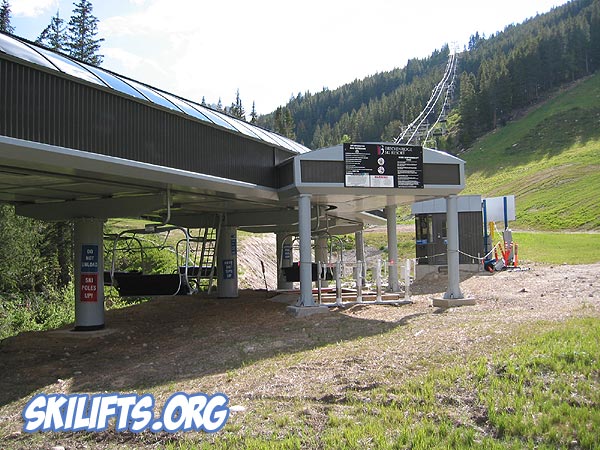

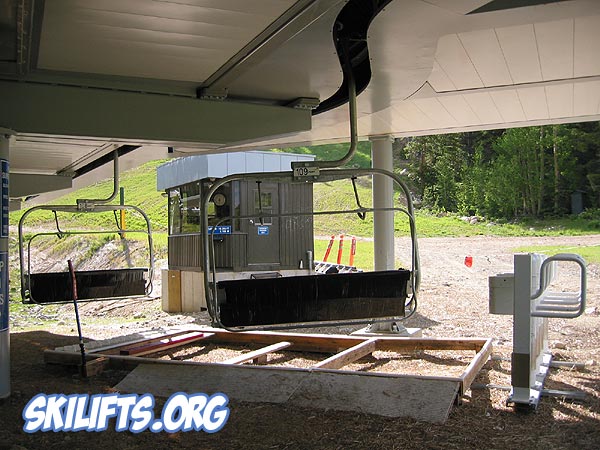

The Mid Loading Area
Peak 8 Super Connect Super Chair at Breckenridge
The Mid Loading Area
Peak 8 Super Connect Super Chair at Breckenridge
The Mid Station
Peak 8 Super Connect Super Chair at Breckenridge
The Mid Station
Peak 8 Super Connect Super Chair at Breckenridge
Looking Down The Lift Line
Peak 8 Super Connect Super Chair at Breckenridge

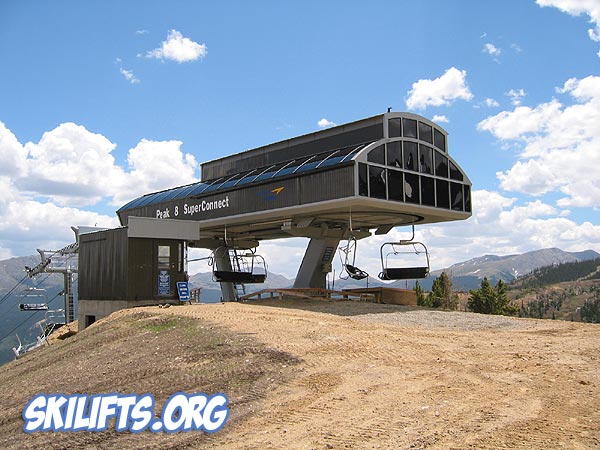

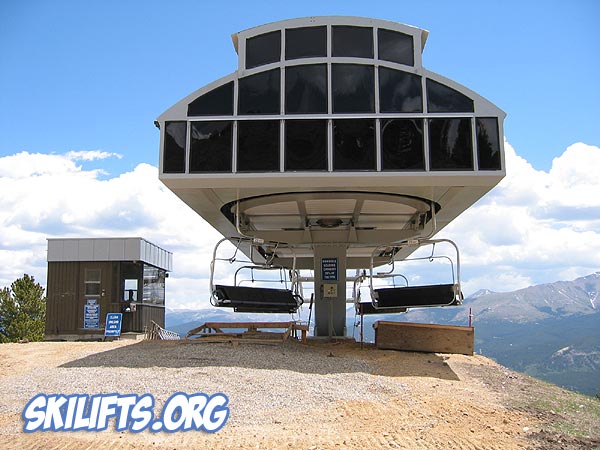

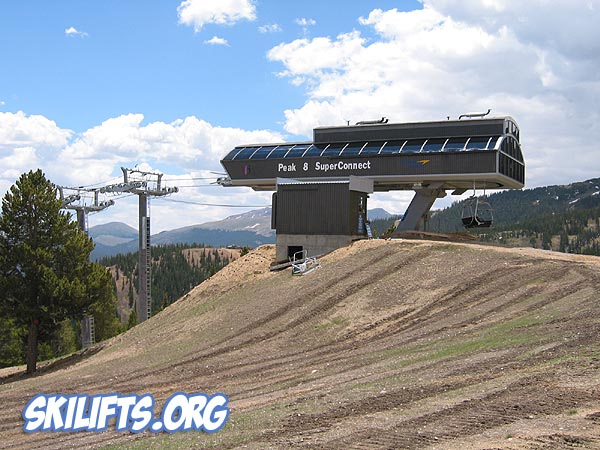

The Top Station
Peak 8 Super Connect Super Chair at Breckenridge
The Top Station
Peak 8 Super Connect Super Chair at Breckenridge
The Top Station
Peak 8 Super Connect Super Chair at Breckenridge
The Top Station
Lift Stats:
Manufacturer:  Leitner-POMA
Type:  High-speed quad
Installed:  2002
Drive:  At top station
Tensioning:  At bottom & top station
Motor: 900 HP
Motor rating, continuous: N/A kW
Motor rating, starting:  N/A kW
Haul rope diameter:  N/A
Rope guage:  4.8 m
Vertical rise: 1,423 ft / 433.73 m
Inclined length:  8,377 ft / 2,553.31 m

Speed on line:

1,000 fpm / 5.08 m/s
Speed in station: 195 fpm / 1 m/s
Number of towers:  28
Number of chairs:  190 pcs.
Capacity:  2,600 P/h
Ride time:  8.5 minutes

Chair parking:

Manual emergency rail at bottom station

Other notes:

N/A
