Silver Queen - Aspen Mountain |
Lift Stats: |
Manufacturer: | POMA |
Type: | 6 person gondola |
Installed: | 1986 |

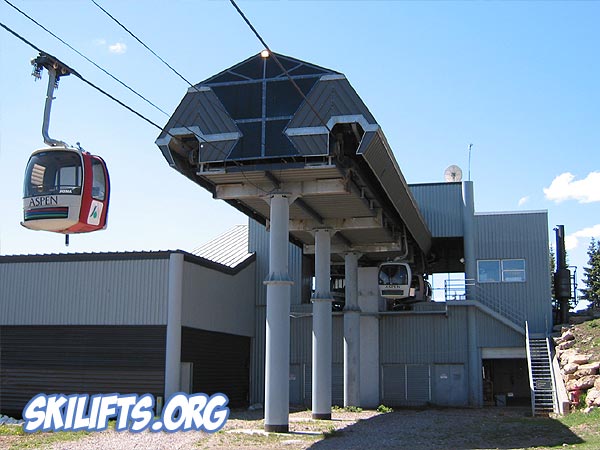

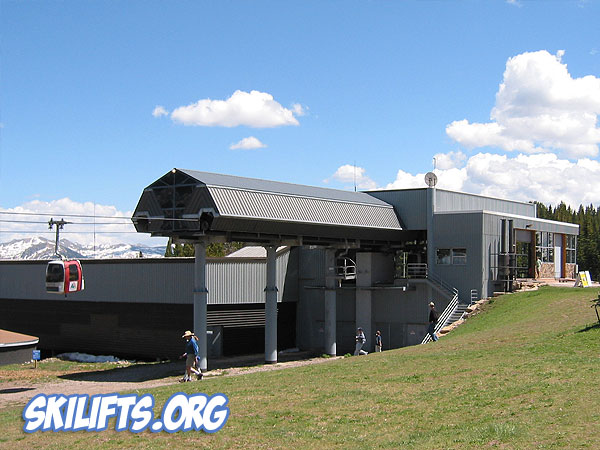

Drive: | In top station |

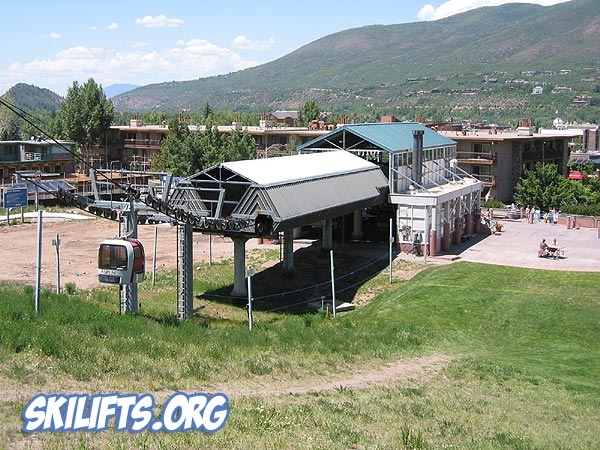

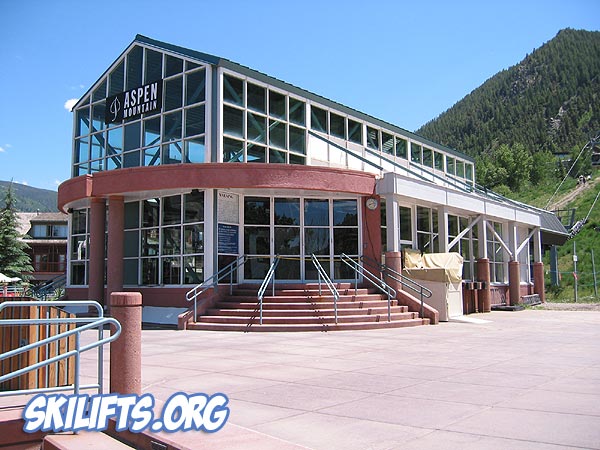

Tensioning: | In bottom station |
Motor: | N/A HP |
Motor rating, continuous: | N/A kW |
Motor rating, starting: | N/A kW |
Haul rope diameter: | N/A mm |
Rope guage: | N/A m |
Vertical rise: | 994.8 m |
Inclined length: | 4,028.2 m |
Speed on line: |
5.6 m/s |
Speed in station: | N/A m/s |

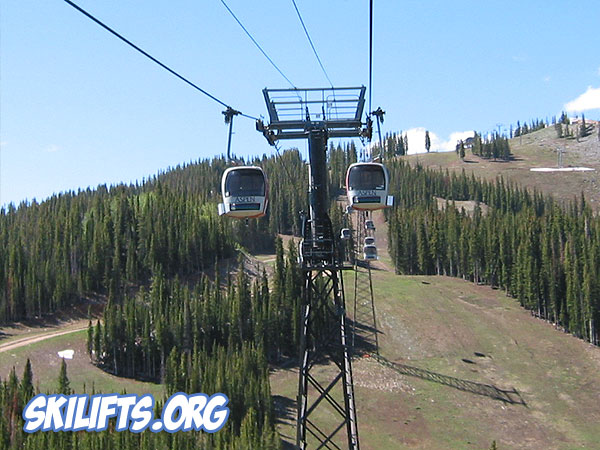

Number of towers: | 35 |
Number of cabins: | N/A |
Capacity: | 2,400 P/h |
Ride time: | 14 minutes |
Cabin parking: |
At the top station |
Other notes: |

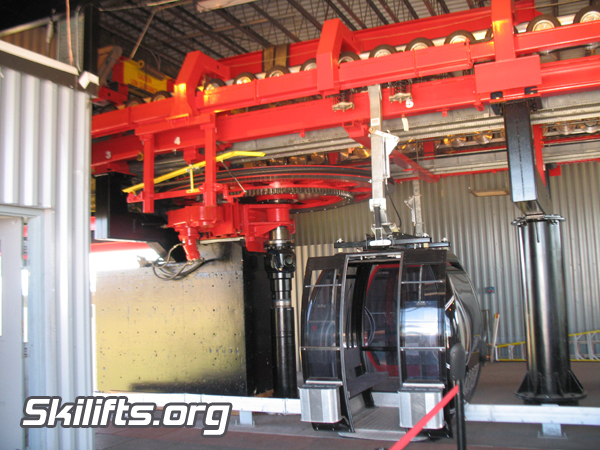

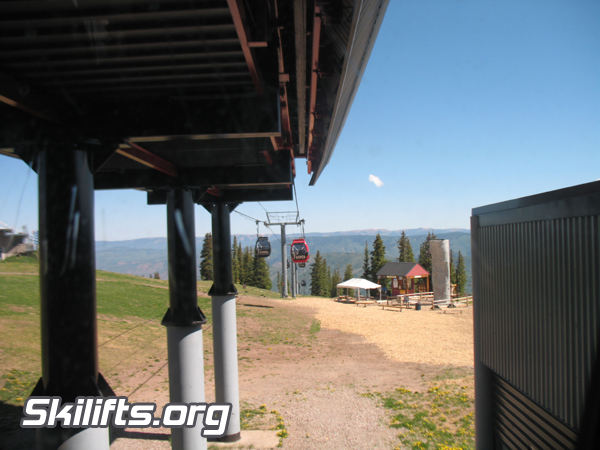

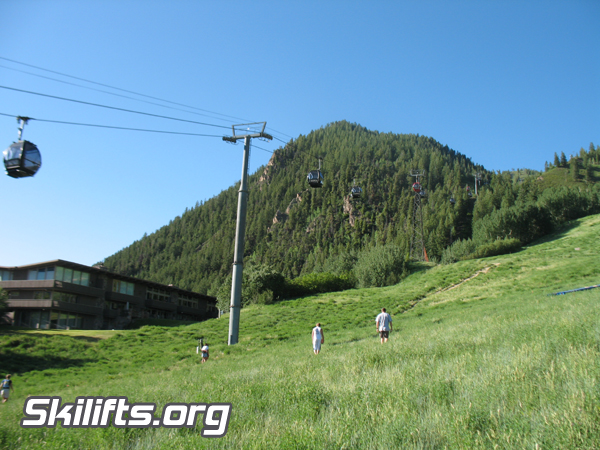

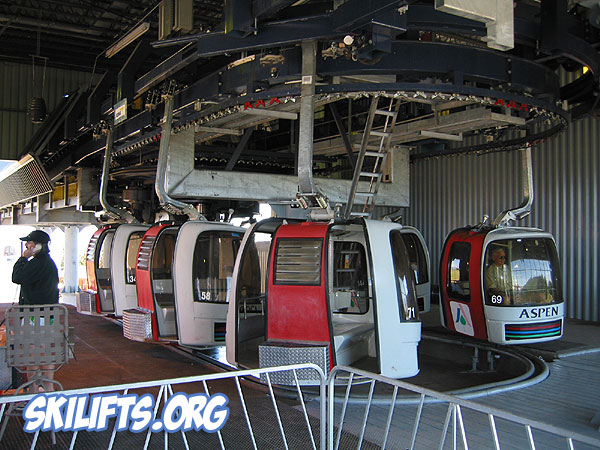

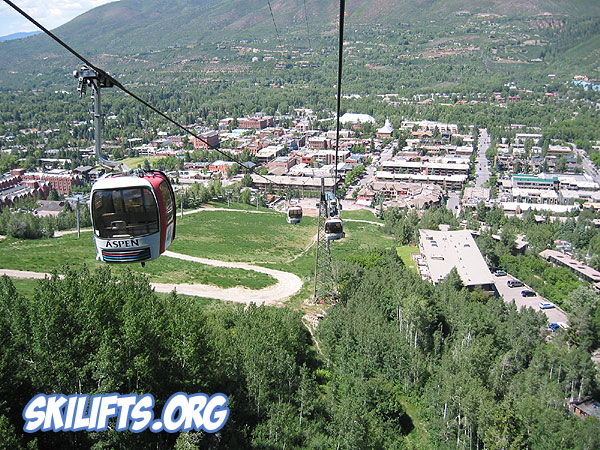

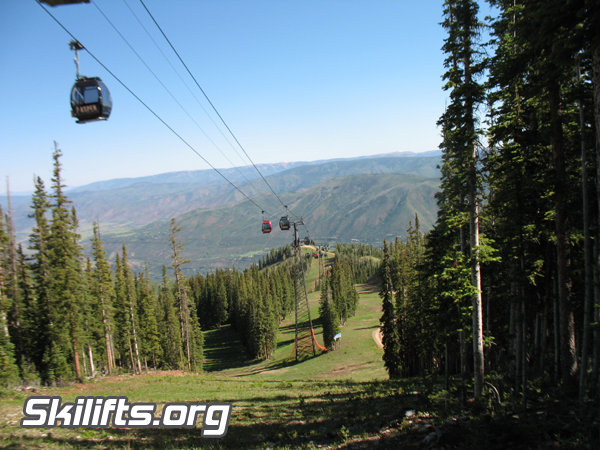

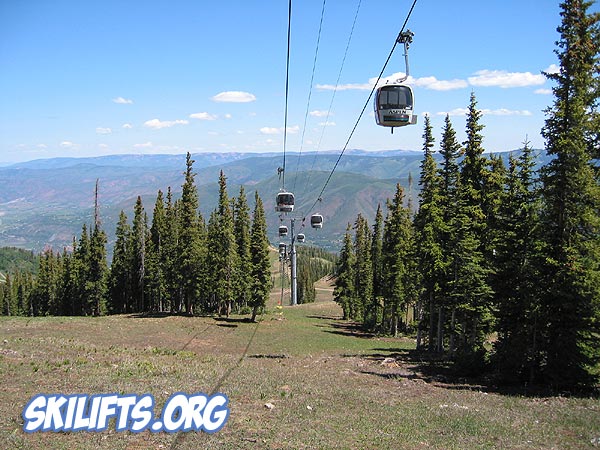

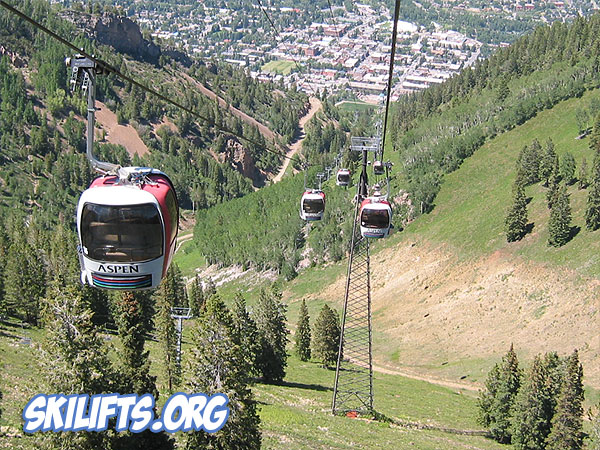

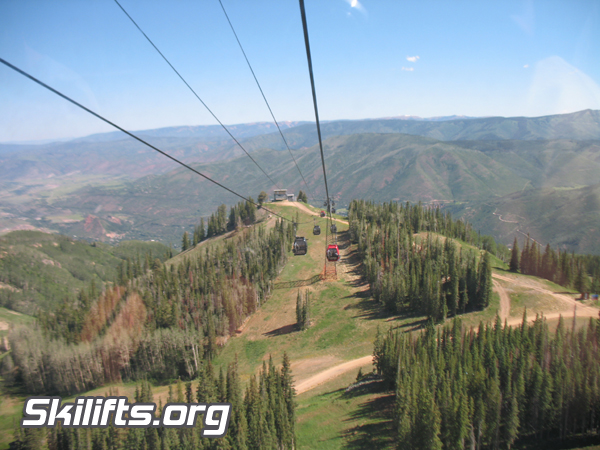

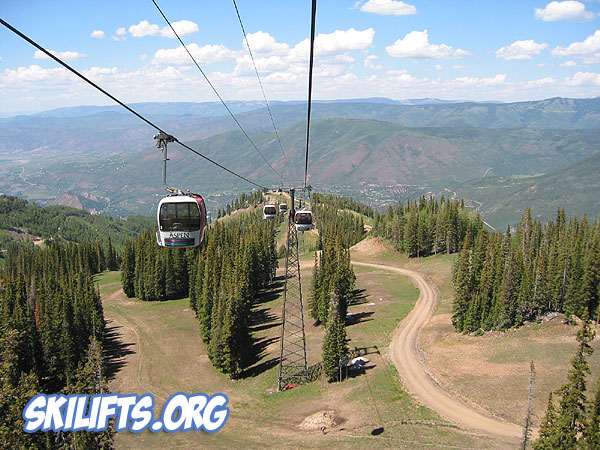

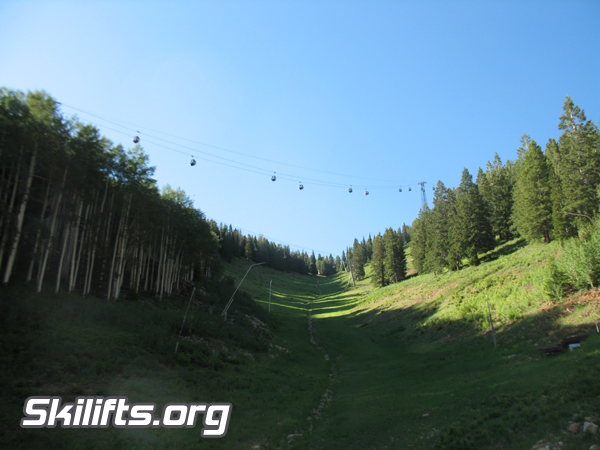

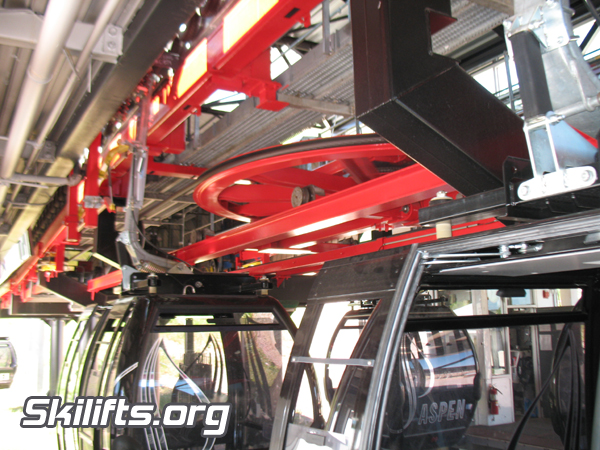

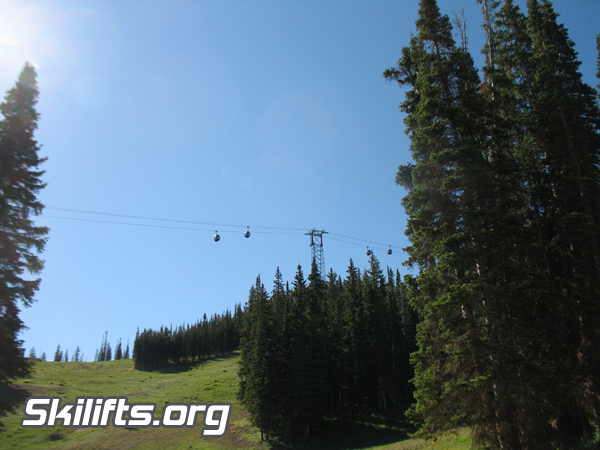

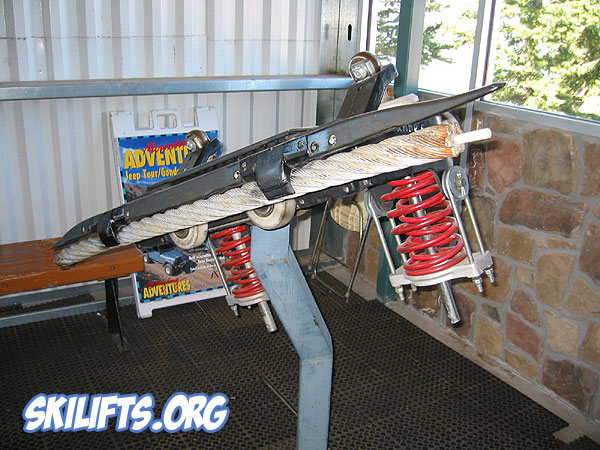

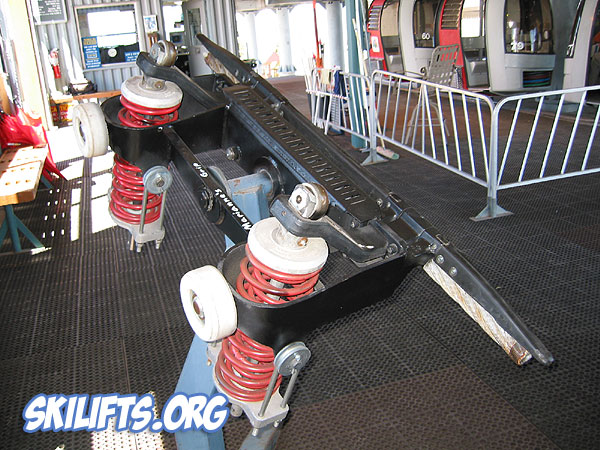

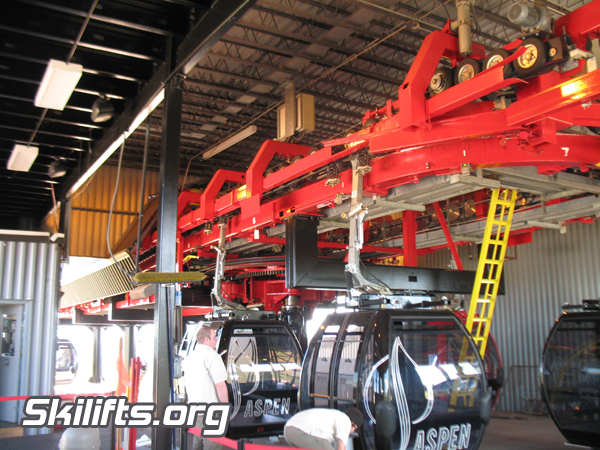

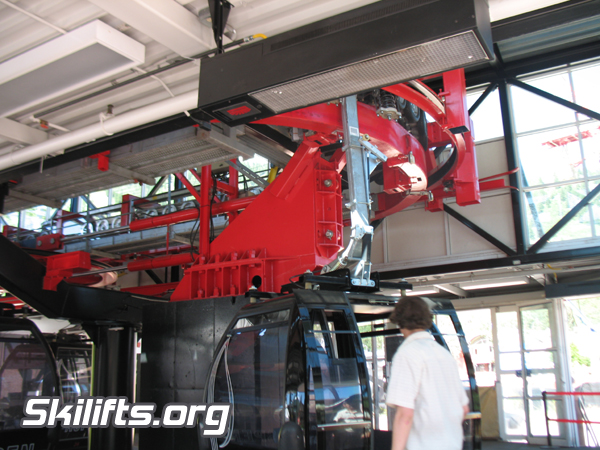

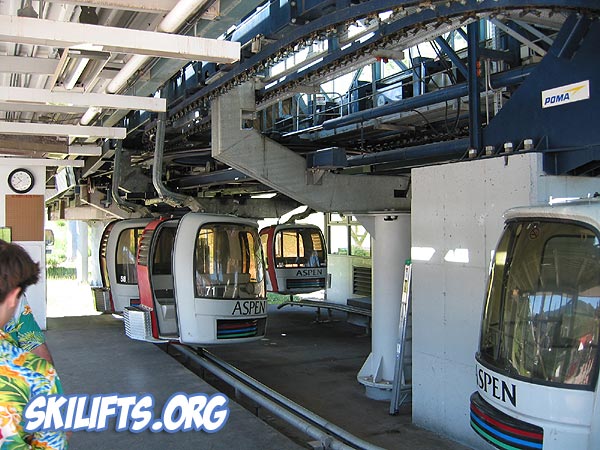

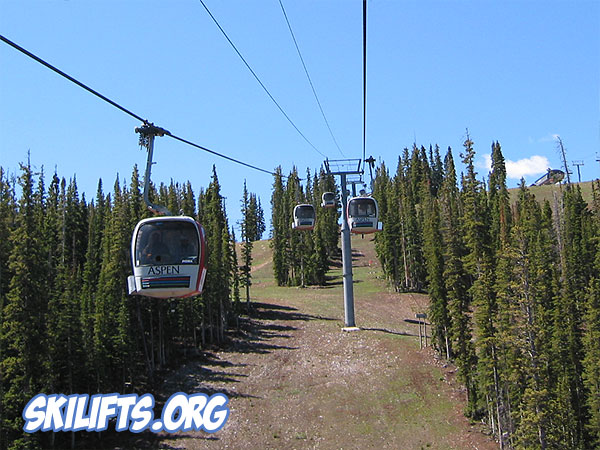

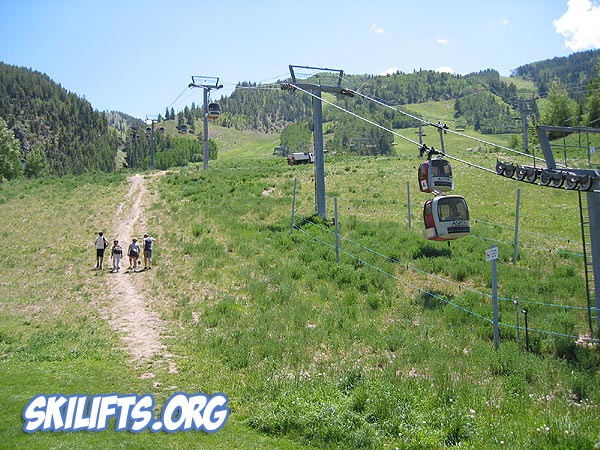

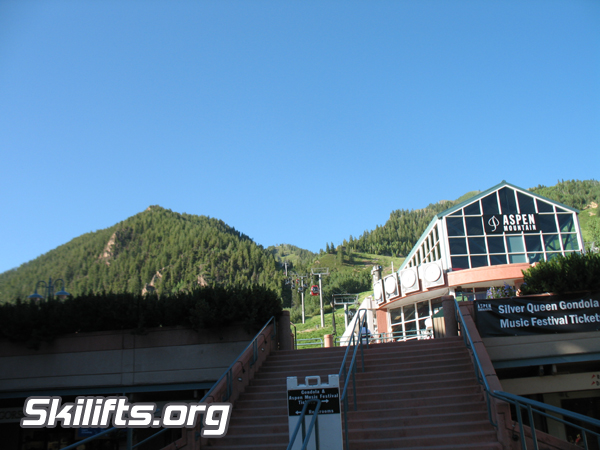

In the summer of 2006, the Silver Queen underwent a retrofit that included new carriers (CWA Omega III), upgraded contours, a new drive, and the terminal equipment was painted a new color. In the summer of 2005, the grips were rebuilt. The first eighteen pictures show the gondola with original cabins. The second fourteen show the gondola post retrofit. |
