KT-22 Express - Squaw Valley
KT-22 Express at Squaw Valley, CA

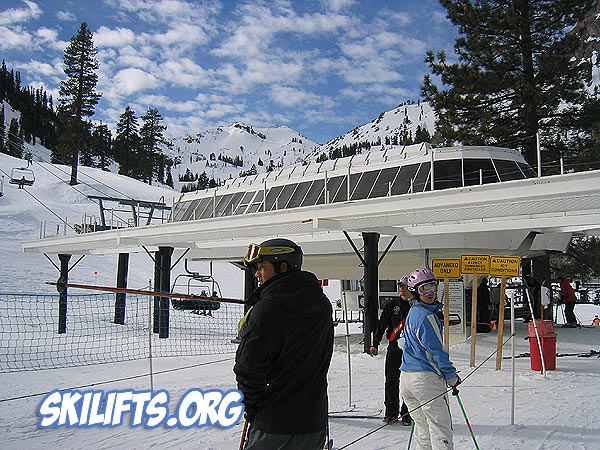

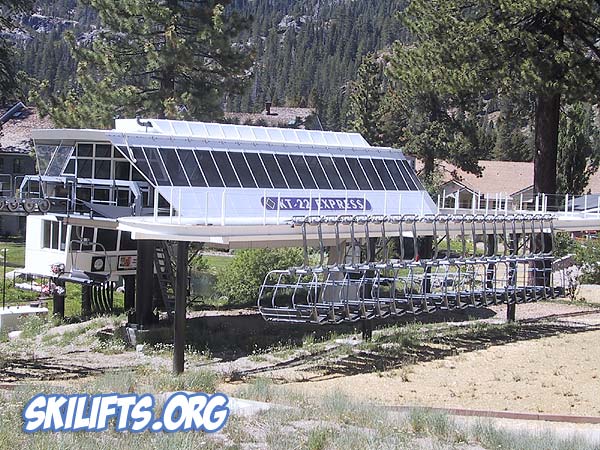

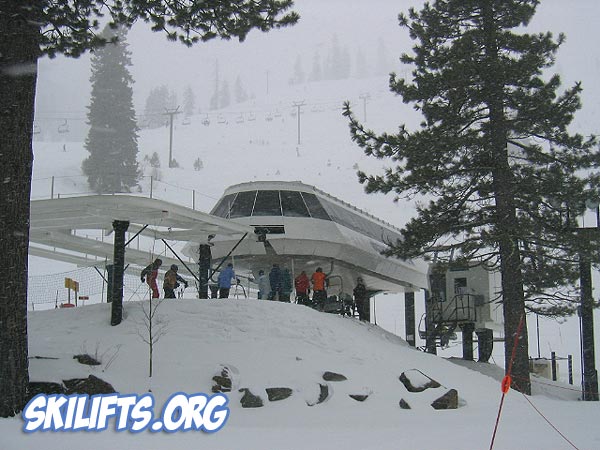

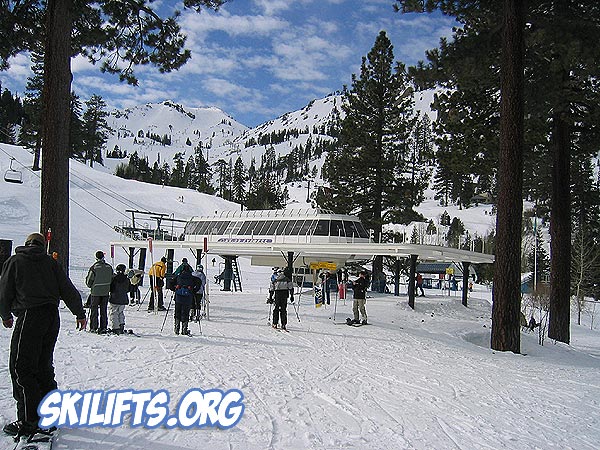

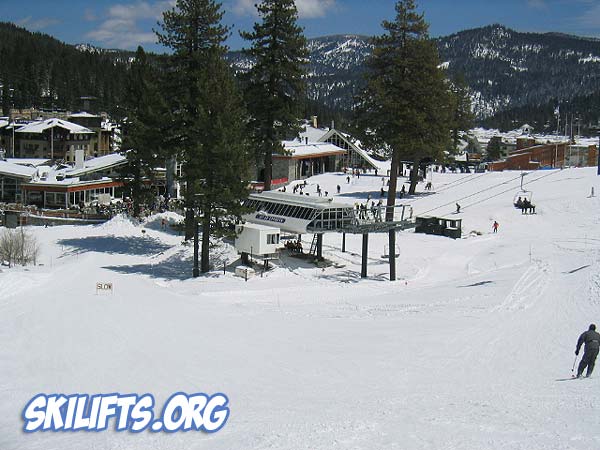

The Lower Station
KT-22 Express at Squaw Valley, CA
The Lower Station
KT-22 Express at Squaw Valley, CA
The Lower Station
KT-22 Express at Squaw Valley, CA
The Lower Station
KT-22 Express at Squaw Valley, CA
The Lower Station
KT-22 Express at Squaw Valley, CA

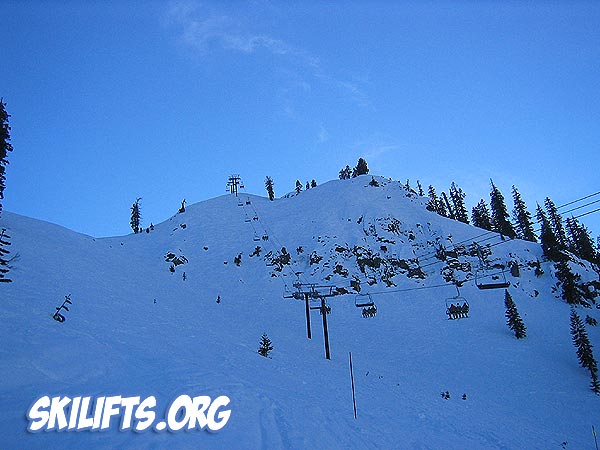

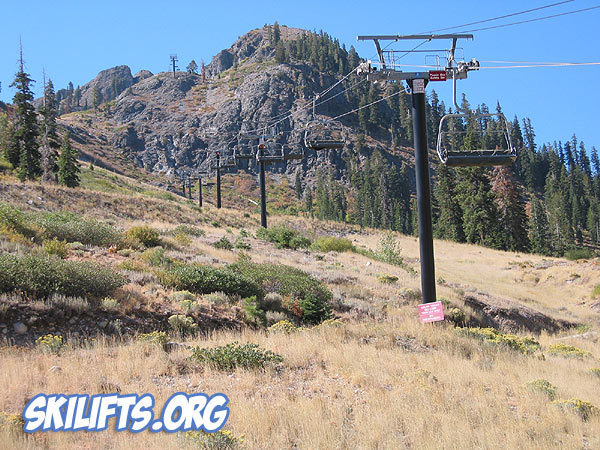

Looking Up The Lift Line
KT-22 Express at Squaw Valley, CA

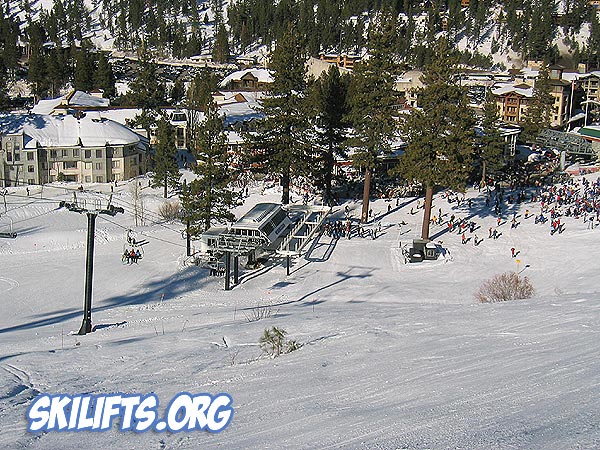

Looking Down The Lift Line
KT-22 Express at Squaw Valley, CA
Looking Up The Lift Line
KT-22 Express at Squaw Valley, CA
Breakover Towers
KT-22 Express at Squaw Valley, CA

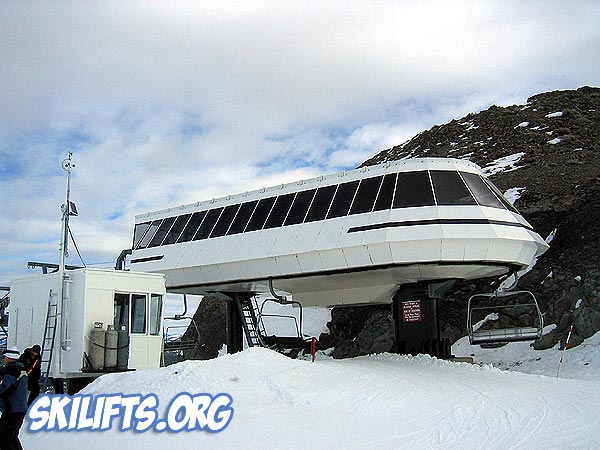

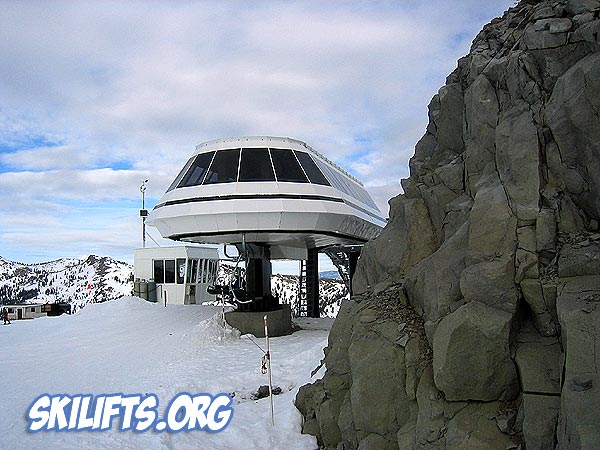

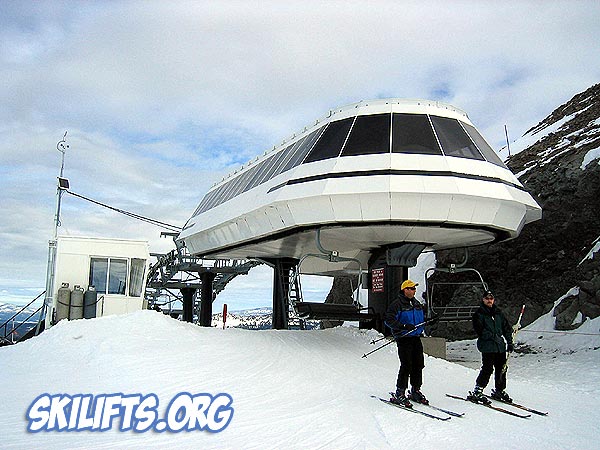

The Top Station
KT-22 Express at Squaw Valley, CA
The Top Station
KT-22 Express at Squaw Valley, CA
The Top Station
Lift Stats:
Manufacturer:  Doppelmayr
Type:  High-speed quad
Installed:  1995
Drive:  At bottom station
Tensioning:  At bottom and top station
Motor: 700 HP
Motor rating, continuous: N/A kW
Motor rating, starting:  N/A kW
Haul rope diameter:  N/A mm
Rope guage:  4.8 m
Vertical rise: 534.9 m
Inclined length:  1,536.8 m

Speed on line:

5.08 m/s
Speed in station: 1 m/s
Number of towers:  N/A
Number of chairs:  N/A pcs.
Capacity:  2,100 P/h
Ride time:  N/A minutes

Chair parking:

At bottom station

Other notes:

N/A
