QMC (Quad Mono Cable) - June Mountain
QMC Tram at June

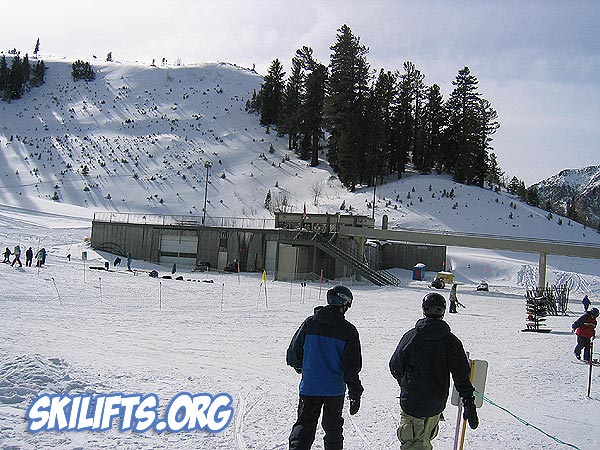

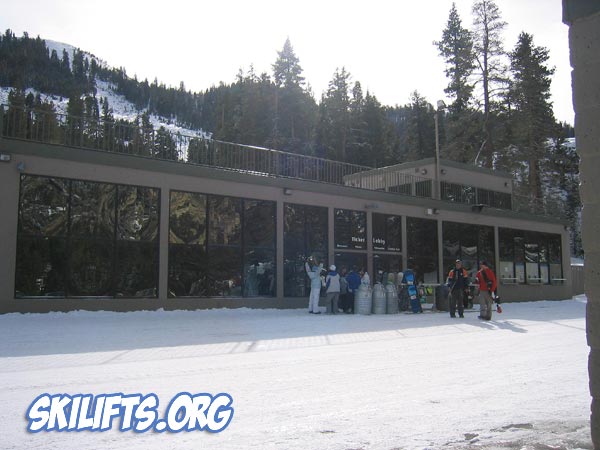

The ticket building, with loading on the roof and the motor located inside when the lift ran.
QMC Tram at June

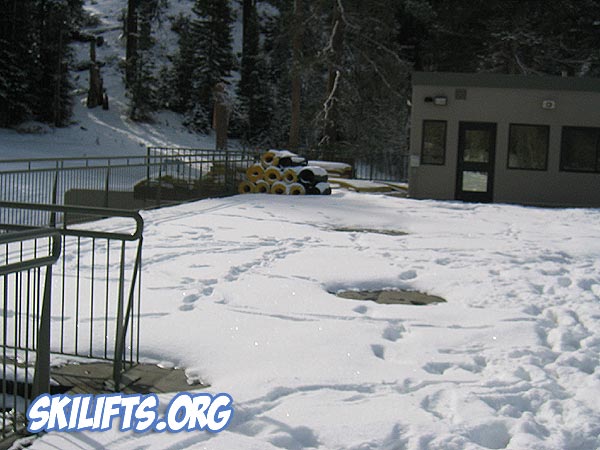

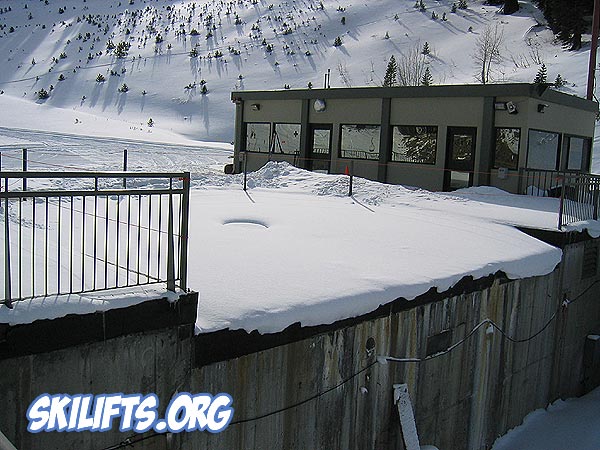

The lower terminal loading platform.
QMC Tram at June

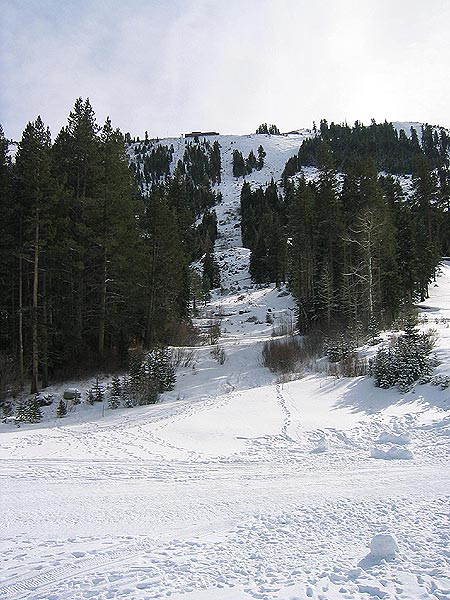

The liftline.
QMC Tram at June
The top terminal loading platform.
QMC Tram at June
The topterminal from a distance.
QMC Tram at June

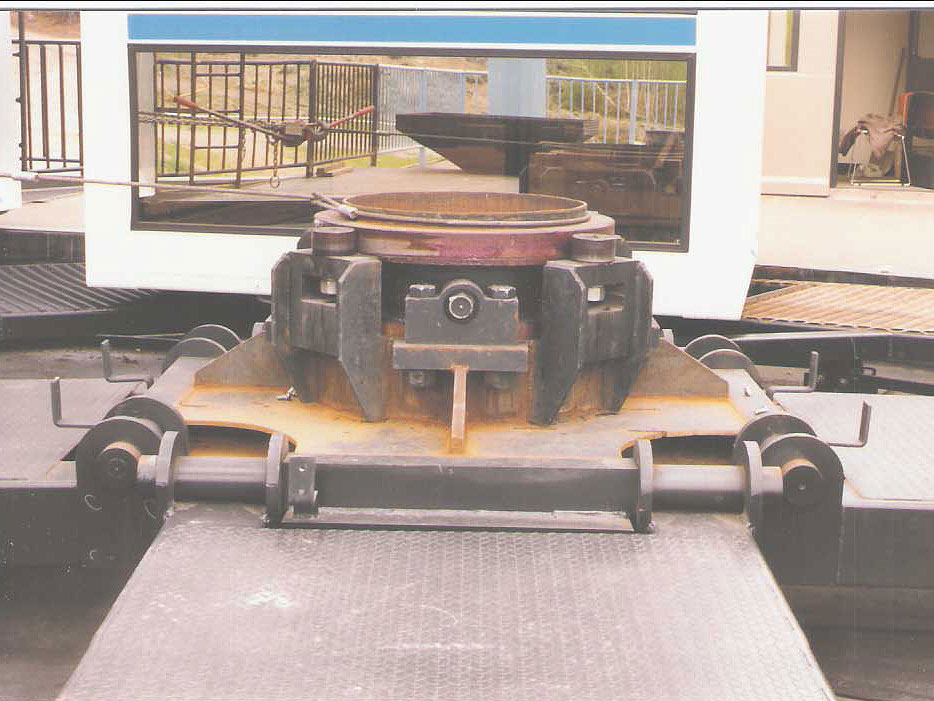

Turntable and Car. Picture thanks to Ryan B.
QMC Tram at June

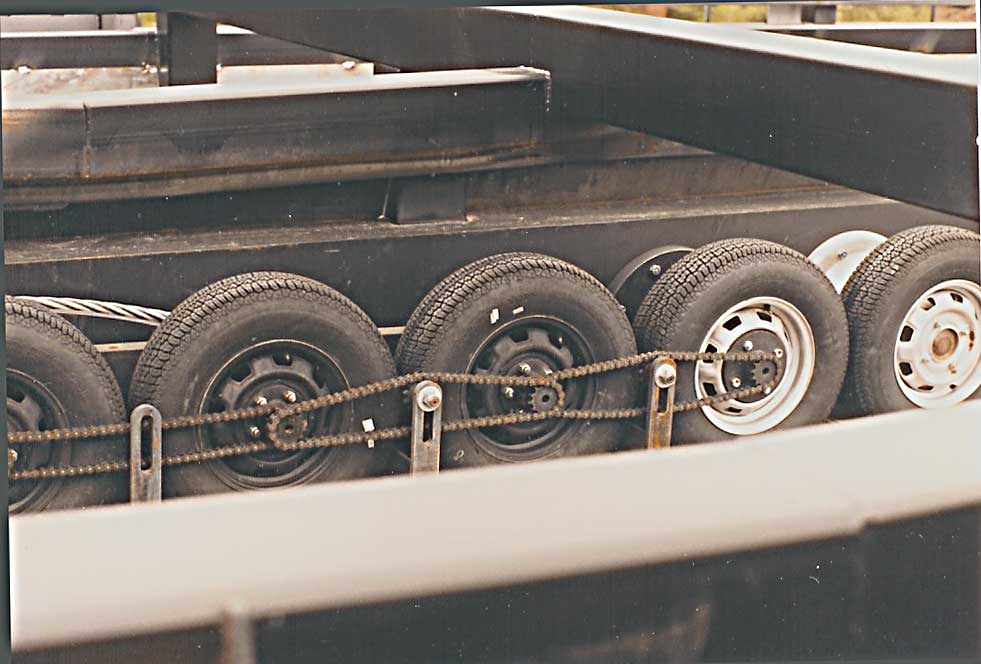

Chain drive accelerators. Picture thanks to Ryan B.
QMC Tram at June

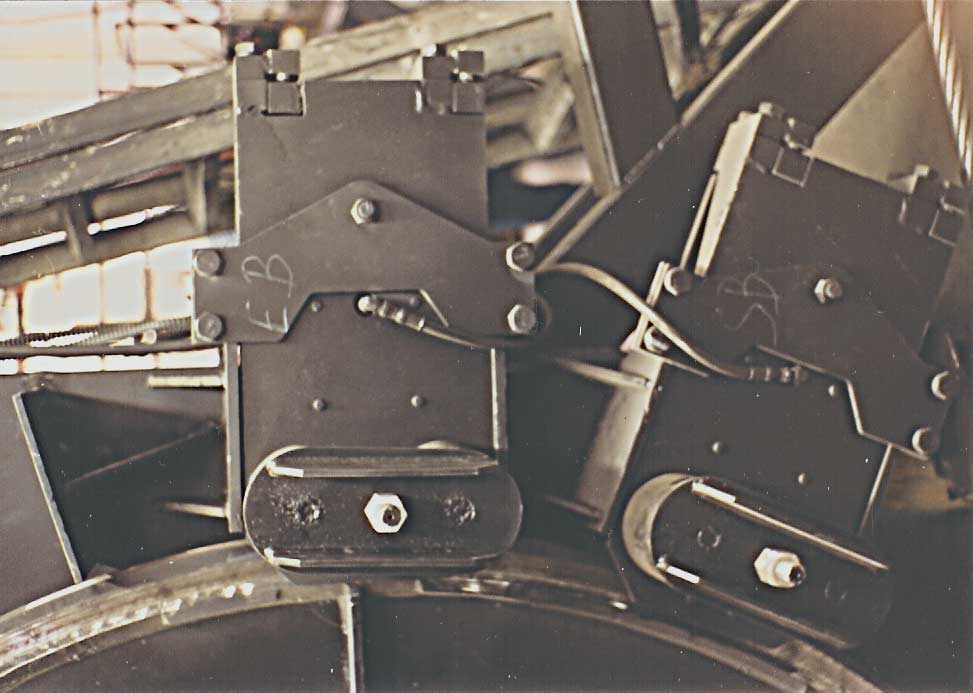

Service and emergency brakes – notice unique labeling system. Picture thanks to Ryan B.
QMC Tram at June
Carriage system, two of the four grips are shown (red arrows). Tires on the carriage assist car when going under hold down assemblies – notice second car/carriage in background. Picture thanks to Ryan B.
QMC Tram at June

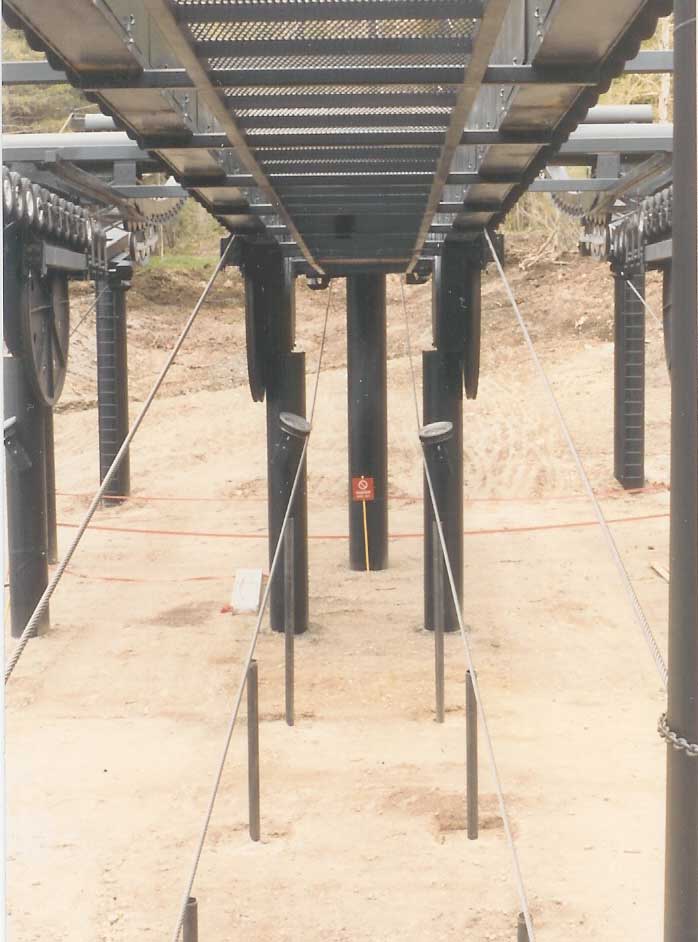

Lower terminal -bottom side looking uphill. Notice on the far left and right of the image two bullwheels. Center of image are two deviation sheaves, small pipes under haul rope are supports for covers to be installed later. Picture thanks to Ryan B.
QMC Tram at June

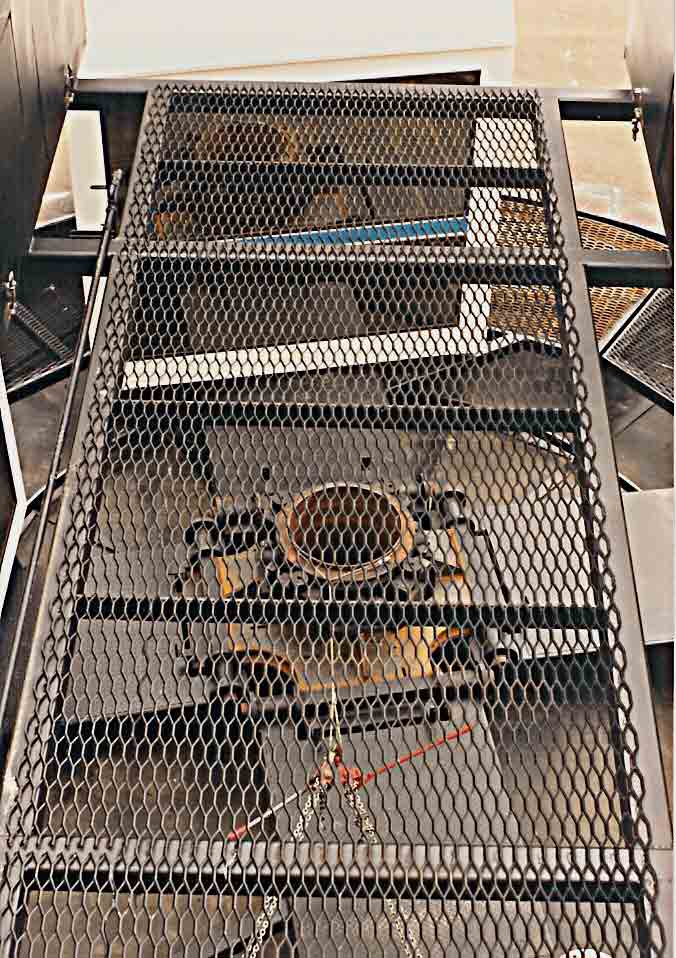

Upper view of lower terminal turntable - cover removed for repairs. Picture thanks to Ryan B.
QMC Tram at June

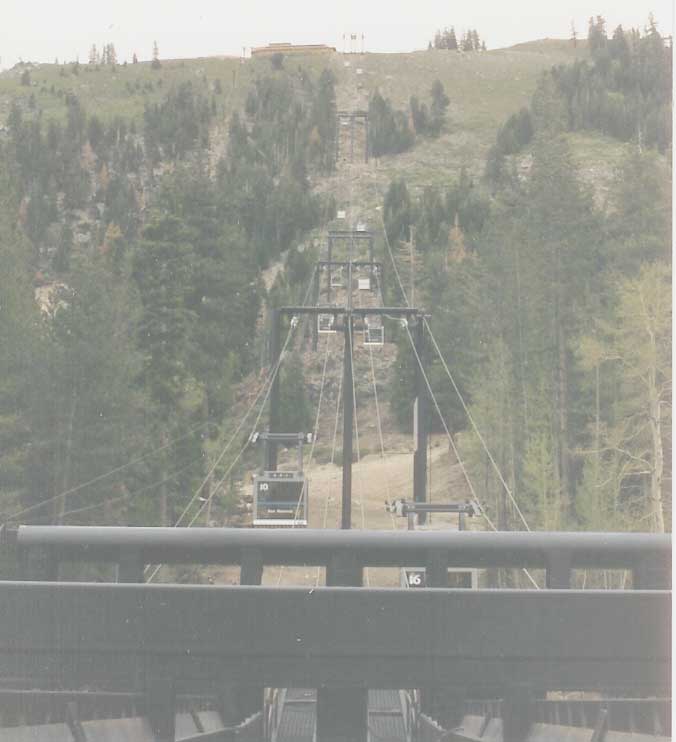

Lift line with portal towers. Picture thanks to Ryan B.
QMC Tram at June

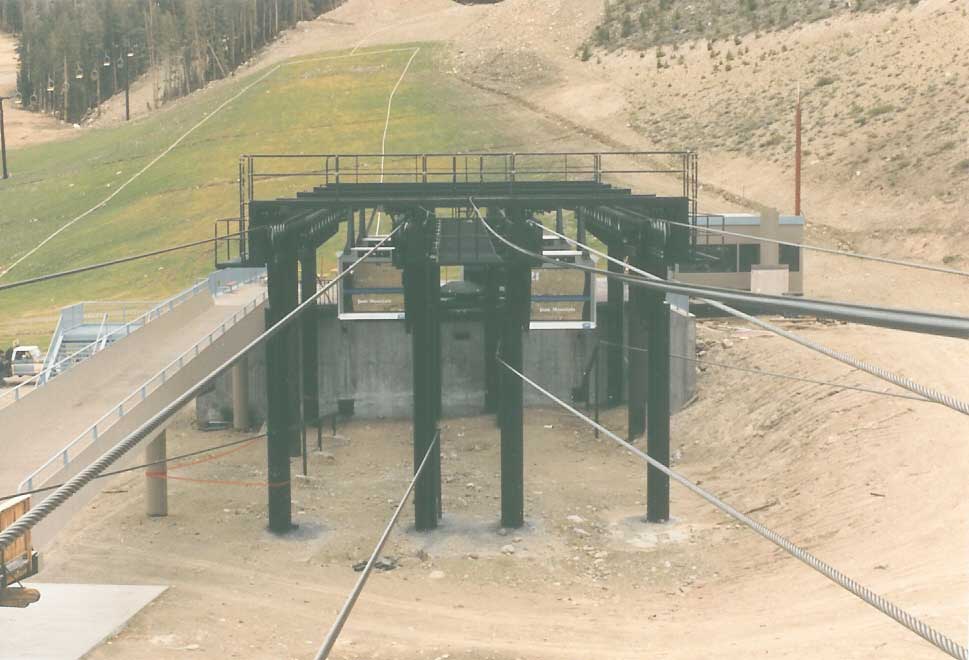

The top terminal. Picture thanks to Ryan B.
QMC Tram at June

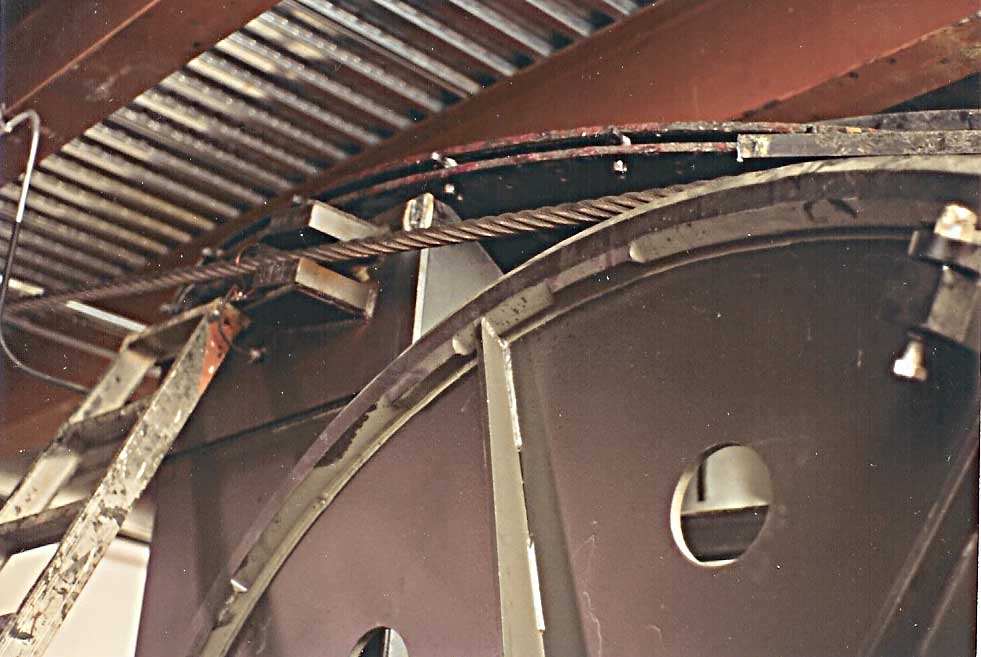

Drive bullwheel in the lower terminal - at the top of the ladder is a large cable deflector. Picture thanks to Ryan B.
QMC Tram at June
A QMC cabin as it rests today, in the parking lot at Canyon Lodge used as storage.
Lift Stats:
Manufacturer:  Lift Engineering (YAN)
Type:  Quad Mono Cable (Similar to a funitel)
Installed:  Late 80s
Drive:  In bottom station
Tensioning:  In top station
Motor: N/A HP
Motor rating, continuous: N/A kW
Motor rating, starting:  N/A kW
Haul rope diameter:  N/A mm
Rope guage:  N/A m
Vertical rise: N/A m
Inclined length:  N/A m

Speed on line:

6 m/s
Speed in station: N/A m/s
Number of towers:  7
Number of cabins:  N/A pcs.
Capacity:  N/A P/h
Ride time:  N/A minutes

Chair parking:

N/A

Other notes:

Was removed in late 90s due to grip and other maintence problems. Currently a 15 person gondola is planned to replace the lift.
