DT-104 Disassembly, 8 of 9

By SuperRat (View all albums)

Uploaded Jul 18 2008 05:04 AM

Camera: OLYMPUS CORPORATION X100,D540Z,C310Z
Taken: Jan 17 2008 12:58 AM
Views: 1634

Copyright

0

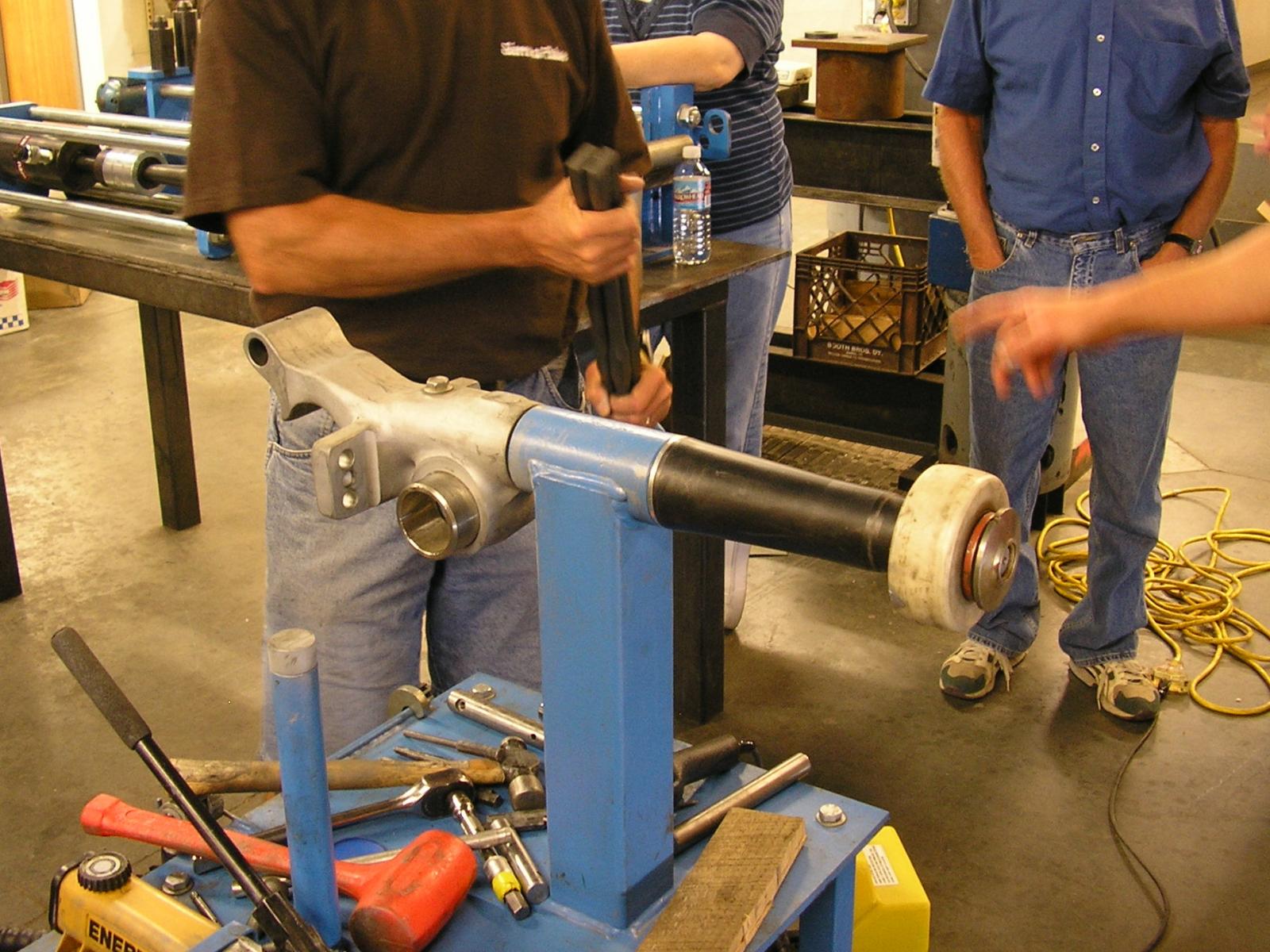

The torsion rods have been removed. A square mid section of the rods also fit tightly inside the square opening of the grip body. So the rods are held fast at the ends and in the middle. The torsion comes when the torsion tubes twist the ends of the rods.
